Schneider Electric

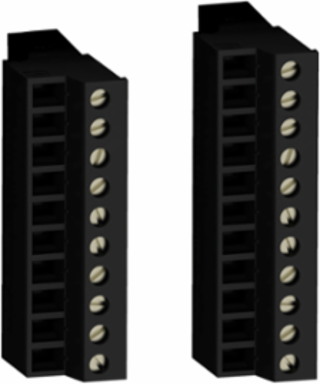

Schneider Electric TMAT2MSET Modicon M221 Connector Set with 8 Removable Screw Terminals

  • MPN: TMAT2MSET
  • PPN: SCH-TMAT2MSET
  • UNSPSC: 32151705

CAD

$101.80

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

connector set for M221M and TM3 - IO This connector set is proposed as a spare part available for Modicon M221 Book logic controllers and Modicon TM3 I/O expansion modules. It is used to connect the inputs/outputs of Modicon M221 Book logic controllers and Modicon TM3 I/O expansion modules. It is composed of 8 removable connectors with screw terminals used to equip a Modicon M221 Book logic controller and the digital I/O of Modicon TM3 I/O expansion modules. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards.

Features

  • SD card and USB port
  • 2 analog inputs and a broad choice of I/Os
  • Run/stop switch and cartridge extension
  • Ethernet and serial line ports
  • A bus connector is set to distribute data and power supply when coupling Modicon TM3 expansion modules to Modicon PLC

Documentation & Downloads

Specifications

Key Specifications

Country of OriginIndonesia

Important Information Attributes

Persona Type IdsEU, OM, OM8
Electrical Connectionremovable screw terminal block, 10 for inputs/outputs pitch 3.81 mm), removable screw terminal block, 11 for inputs/outputs pitch 3.81 mm)
Local Data StatusPublishable
Return IndicatorN
ServiceabilityNo
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Accessory / Separate Part Categoryconnection accessories
Nbr. Of Units In Pkg.1
Warranty In Months18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Accessory / Separate Part DestinationModicon M221, Modicon TM3
Local Publishable Date2026-08-06
Device TypePLC System - PLC Component
TraceabilityNo
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2017
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Number Of Connectors8 terminal block
Product Or Component Typeterminal block
Sustainable PackagingNo
Accessory / Separate Part Typescrew terminal block
Customs Code8536904000

Environment Attributes Main

Product Compatibilitydiscrete I/O module, logic controller
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes

General Attributes

Product Or Component Typeterminal block

ETIM

ETIM 8EC002584
ETIM 10EC002584
ETIM 9EC002584
Modicon M221 Connector Set with 8 Removable Screw Terminals
