Schneider Electric

Schneider Electric TMAT2CSET connector set, Modicon M221, for M221C I/O

connector set, Modicon M221, for M221C I/O
  • MPN: TMAT2CSET
  • PPN: SCH-TMAT2CSET

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$99.58/ EA

Description

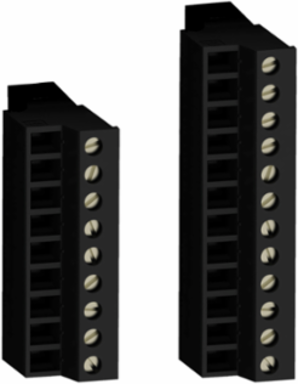

connector set for M221C - IO This connector set is proposed as a spare part available for Modicon M221 logic controllers. It is used to connect the inputs/outputs of Modicon M221 logic controllers It is composed of 8 removable connectors with screw terminals used to equip a Modicon M221 logic controller. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards.

Specifications

Specifications

Accessory / Separate Part Category
connection accessories
Accessory / Separate Part Type
screw terminal block
Product Or Component Typeterminal block

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Complementary

Electrical Connection
removable screw terminal block, 8 for inputs/outputs pitch 5.08 mm) || removable screw terminal block, 9 for inputs/outputs pitch 5.08 mm) || removable screw terminal block, 10 for inputs/outputs pitch 5.08 mm) || removable screw terminal block, 12 for inputs/outputs pitch 5.08 mm) || removable screw terminal block, 13 for inputs/outputs pitch 5.08 mm)
Number Of Connectors
8 terminal block
Accessory / Separate Part Destination
Modicon M221
Range CompatibilityModicon M221
Product Compatibilitylogic controller
