Telemecanique Sensors XZCC12FDB50R Female, M12, 5 pin, shielded straight connector
- MPN: XZCC12FDB50R
- UPC: 785901611981
- PPN: TES-XZCC12FDB50R
- UNSPSC: 39122238
CAD
$70.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

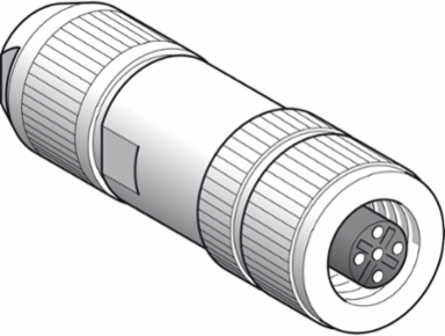

Female, M12, 5 pin, shielded straight connector
Documentation & Downloads
Specifications
Key Specifications
- Collar Material
- metal
- Range Of Product
- Telemecanique Cabling components
- Status Led
- without
- Cable Connection
- spring 0.5 mm² 4-8 mm
Electrical Connectionstraight female connector M12, 5 pins
Accessory / Separate Part Categorycabling accessories
Accessory / Separate Part Typeconnector
Complementary
- Minimum Insulating Resistance
- 1000 GΩ
- Cable Connector Fixing
- screw-on
- Enclosure Material
- metal
- Contact Resistance
- 8000 µOhm
[Ue] Rated Operational Voltage30 V AC || 36 V DC
Line Rated Current4 A
Net Weight0.02 kg
Environment
- Ambient Air Temperature For Operation
- -40-85 °C
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
