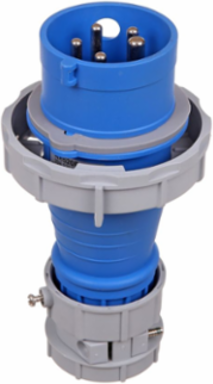

Eaton AH520C7W Eaton Arrow Hart pin and sleeve connector — Voltage Rating: 277/408 V, Amperage Rating: 20A, Allowable Wire Size: #12-10 AWG, Number Of Wires: 5 Grounding
- MPN: AH520C7W
- UPC: 032664732669
- PPN: COW-AH520C7W
CAD
$196.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #12 - #10 AWG, 20A, 3ØY 277/480V, Back wire, Red, Nickel plated brass, IP67, Nylon, Four-pole, Five-wire, grounding, 0.433-0.84in (1.10-2.5cm), Female, 5 HP, Nylon, Three-phase
Specifications
Key Specifications
| Length | 8.5 in |
|---|---|
| Width | 4.375 in |
| Product Type | Pin and Sleeve connector |
| Amperage Rating | 20A |
| Contact Material | Nickel plated brass |
| Number Of Wires | 5 Grounding |
| Cord Diameter | 0.433-0.84in (1.10-2.5cm) |
| Gender | Female |
| Allowable Wire Size | #12-10 AWG |
| Design Type | Pin and sleeve connector |
| Product Series | Arrow Hart Pin And Sleeve Iec 60309 Devices |
| Height | 4.375 in |
|---|---|
| Weight | 0.826 lbs |
| Type | Connector |
| Voltage Rating | 277/408 V |
| Application | Industrial, food and beverage, wastewater treatment |
| Number Of Poles | Four-pole |
| Phase | Three-phase |
| Horsepower | 5 hp |
| Torque Rating | 10 lbf-inch |
| Face/Body Material | Nylon |
