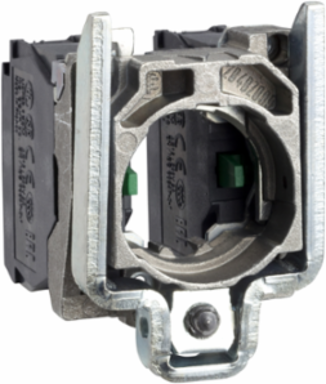

Harmony XB4 Joystick Controller Body Assembly, 2NO, 30 mm x 47 mm
Schneider Electric

Schneider Electric ZD4PA103 Harmony XB4 Joystick Controller Body Assembly, 2NO, 30 mm x 47 mm

  • MPN: ZD4PA103
  • PPN: SCH-ZD4PA103
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $32.60

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB4 contact block operates with 2 directions and uses screw-clamp terminals. It has a chromium-plated metal bezel. This contact block is pre-mounted to a body fixing collar and allow fast and easy replacement and configuration of your joystick controllers with 2-direction operation. It is easily installed and replaced on XB4 complete joystick controllers and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France

    Physical Attributes

    Cad Overall Height
    47 mm
    Cad Overall Width30 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Head
    cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Certificate Agency
    DNV, UL Listed, LROS (Lloyds register of shipping), BV, CSA
    Carbon Footprint Of The Distribution Phase [A4]
    0.007976769003447709, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.028813511738630768, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    kg CO2 eq., 0
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2302014EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Compatibility Code
    ZD4
    Contacts Material
    silver alloy (Ag/Ni)
    Contacts Usage
    standard
    Electrical Shock Protection Class
    class I conforming to IEC 60536
    Mechanical Durability
    1000000 cycles
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Harmony XB4
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Vibration Resistance
    5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep Code
    ENVPEP2302014EN
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    [Ui] Rated Insulation Voltage
    600 V 3)IEC 60947-1
    Connections - Terminals
    screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8538908180
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Contacts Composition2 NO
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.08297742571006403
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.36807305861106554
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Operationslow-break
    Contacts Type And Composition2 NO
    Device Short NameZD4
    Fixing Collar Materialzamak
    Positive Openingwithout
    Product Or Component Typecomplete body/contact assembly for joystick controller
    ReturnabilityYes
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThis joystick controller operates with 2 direction spring return to zero position mechanism. It has 1 x NO contact and a plastic bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections with power consumption of 0.002W at active phase 7.2%. The product has a 10-year lifespan and adheres to IEC 60947-5-5 and 60947-5-1 standards.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)61.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    0.48784076506320806
    Environmental Disclosure
    ENVPEP2302014EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2302014EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2302014EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    complete body/contact assembly for joystick controller
    Range Of ProductHarmony XB4

    ETIM

    ETIM 8
    EC000041
    ETIM 9EC000041

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    basic element
