Schneider Electric ZB5AA9 Harmony XB5 Push Button Head, 22mm, Spring Return, IP66 Rated, 6 Color Caps

MPN: ZB5AA9
PPN: SCH-ZB5AA9

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$13.94

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

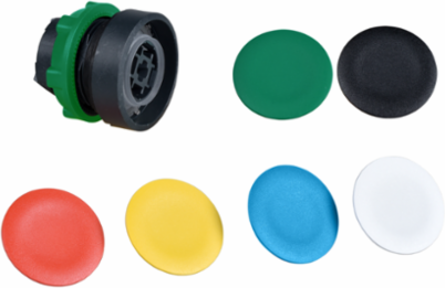

This Harmony XB5, flush head with unmarked caps set is supplied with 6 colored caps. This button head with set of colored caps provides 6 different cap colors for multi-purposes use in operation along with an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Features

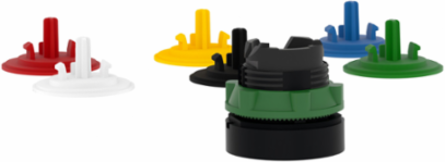

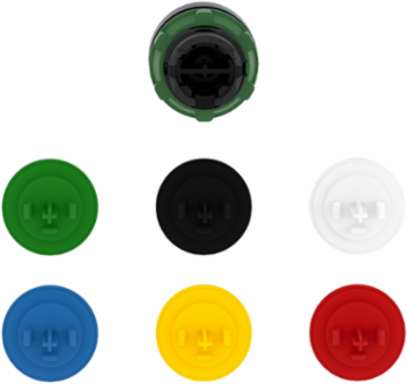

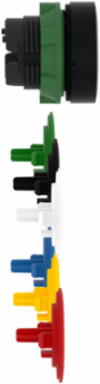

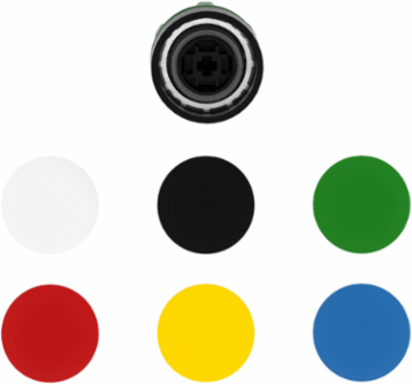

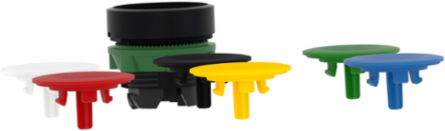

The Schneider Electric ZB5AA9 is a 22mm flush push button head from the Harmony XB5 plastic range. The "9" suffix indicates this is a multi-color kit, including a set of six interchangeable caps (Black, White, Red, Green, Yellow, and Blue). This is an essential "truck stock" item for Canadian electricians, as it allows you to configure the button for any function Start, Stop, Reset, or Forward right at the job site.
This is a spring return (momentary) operator, meaning it only activates its associated contact blocks while being held down. It is the industry standard for "Start" commands in motor control circuits or for "Reset" functions on Canadian industrial machinery.
As part of the XB5 line, the ZB5AA9 features a reinforced polyamide (plastic) bezel. Unlike metal buttons that can pit or oxidize, this plastic version is ideal for Canadian environments subject to high humidity or chemical exposure, such as wastewater treatment plants, dairies, and food processing facilities.
Designed for the harshest wash-down environments, this operator carries IP66, IP67, IP69, and IP69K ratings, as well as NEMA 4X. It is engineered to withstand high-pressure, high-temperature water jets, making it the perfect choice for Canadian "clean-room" or heavy industrial applications.
The ZB5AA9 is part of the modular Harmony system. It snaps into a standard ZB5AZ009 mounting collar without the need for tools. Contact blocks (like the ZBE101) then clip onto the back of the collar, allowing for fast assembly and easy field modifications in crowded control cabinets.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, Mexico, United States

Physical Attributes

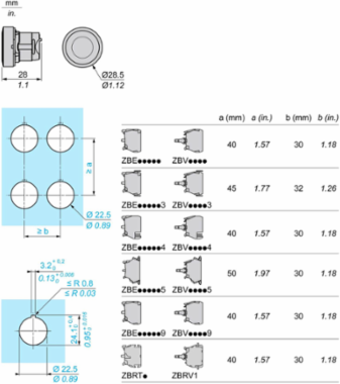

Cad Overall Depth	28 mm
Cad Overall Width	29 mm

Cad Overall Height	29 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Bezel Material	dark grey plastic, dark grey plastic
Electrical Composition Code	C1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting
Certificate Agency	DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.03289195102300111
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.1 kg CO2 eq., 0.13487309761150257
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	6 %
Device Short Name	ZB5
Head Type	standard
Marking	unmarked
Mounting Diameter	22 mm
Operator Profile	6 colors choice flush, unmarked
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station Name	XALD 1...5 cut-outsXALK 2...5 cut-outs
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Operator Profile 1 Marking	unmarked
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; APAC
Cap/Operator Or Lens Colour	6 colors choice
Package Weight(Lbs)	28.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Operator Profile 1 Cap Operator Or Lens Color	6 colors choice
Carbon Footprint Of The Distribution Phase [A4]	0.0063542220714788555, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0047978866516138205, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Applicability	Component
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2303008EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	29 %
Compatibility Code	ZB5
Group Of Product	flush push with 6 caps
Main Group	push-button
Mechanical Durability	10000000 cycles
Operator Additional Information	with set of 6 color cap
Overvoltage Category	class II conforming to IEC 60536
Product Or Component Type	head for non-illuminated push-button
Range Of Product	Harmony XB5
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Sustainable Packaging	No
Type Of Operator	spring return
X C Product	flush push with 6 caps
Pep Code	ENVPEP2303008EN
Pep Verification Date	2024-03-24
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; APAC
Nbr. Of Units In Pkg.	1
Take-back	No
