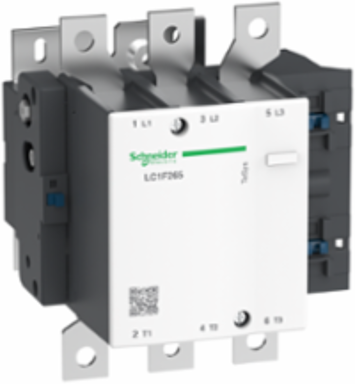

Schneider Electric LC1F265X7 TeSys F Contactor 3P, 265A, 550-600V AC, IP20, Durable Design
- MPN: LC1F265X7
- PPN: SCH-LC1F265X7
CAD
$3245.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Offering a robust solution for industrial automation needs, the TeSys F Contactor by Schneider Electric stands out with its impressive handling capacity of 265A for 550-600V AC applications. This 3-pole contactor not only ensures reliable operation but is designed with durability in mind, making it suitable for demanding environments. Additionally, it falls under the IP20 rating, providing essential protection against solid objects. Ideal for various control and starter applications, this contactor is a testament to Schneider Electric's commitment to high-performance and durable automation solutions.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 350 A AC-1 at 40°C, 265 A AC-3 at 55°C
- Rated Breaking Capacity
- 2120 A IEC 60947-4-1
- Associated Fuse Rating
- 315 A aM, 400 A gG at <= 440 V
- Average Impedance
- 0.3 mOhm at Ith 350 A 50 Hz
- Motor Power
- 132 kW at 380-400 V AC, 140 kW at 415-440 V AC, 160 kW at 500-690 V AC, 147 kW at 1000 V AC, 75 kW at 220-230 V AC, 51 kW AC-4 at 400 V AC
- Poles
- 3P
- Control Circuit Voltage Limits
- Operational 0.85-1.1 Uc, Drop-out 0.15-0.2 Uc, 40-400 Hz
- Inrush Power
- 650 VA, 40-400 Hz, 20°C
- Maximum Operating Rate
- 2400 cycles/hour at 55°C
- IP Degree of Protection
- IP20 front face with shrouds
- Height
- 7.99 in (203 mm)
- Depth
- 8.39 in (213 mm)
- Net Weight
- 16.40 lb (7.44 kg)
- Material
- TH protective treatment
- Rated Insulation Voltage
- 1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
- Standards
- EN 60947-1, IEC 60947-1, JIS C8201-4-1, IEC 60947-4-1
- Ambient Air Temperature for Operation
- -5 to 55 °C
- Permissible Ambient Air Temperature Around the Device
- -40 to 70 °C
Rated Operational Voltage<= 1000 V AC-1, <= 690 V AC-3, <= 690 V AC-4, <= 460 V DC
Rated Short-Time Withstand Current2200 A 10s, 1230 A 30s, 950 A 1 min, 620 A 3 min, 480 A 10 min at 40°C
Conventional Free Air Thermal Current350 A at 40°C
Power Dissipation per Pole37 W AC-1, 21 W AC-3
Amperage265 A
Control Circuit Voltage550-600 V AC 40-400 Hz
Mechanical Durability10 Million Cycles
Hold-in Power Consumption10 VA, 40-400 Hz, 20°C
Operating Time40-65 ms closing, 100-170 ms opening
MountingSupport Plate
Width7.93 in (201.5 mm)
Operating Altitude9842.52 ft (3000 m) without derating
Tightening TorqueControl circuit 1.2 N.m, Power circuit 35 N.m
Pole Contact Composition3 NO
Overvoltage CategoryIII
Product CertificationsCCC, RINA, CB, BV, RMRoS, UL, DNV, LROS, ABS, UKCA
Ambient Air Temperature for Storage-60 to 80 °C
