Schneider Electric LC1D09BD TeSys Deca Contactor 3-Pole 9A 24V DC Coil, IP20 45mm Width
- MPN: LC1D09BD
- PPN: SCH-LC1D09BD
CAD
$207.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This TeSys Deca contactor by Schneider Electric offers reliable automation control with its compact three-pole design and a 9A rating, making it suitable for a variety of industrial applications. Equipped with a 24V DC coil, it delivers efficient performance for controlling electrical circuits while maintaining a space-saving width of just 45mm. The IP20 rating ensures protection against solid objects, enhancing the durability and longevity of your setups. Ideal for use in automation and control systems, this contactor is a valuable component for any electrical panel or starter system.
Features
- The LC1D09BD is a high-performance, 3-pole TeSys Deca contactor designed for controlling AC motors up to 9 Amps (approximately 5 HP at 480V). It acts as a heavy-duty electrical switch, allowing a low-power control signal to safely start and stop high-power industrial machinery.
- The "BD" designation indicates a 24V DC Low Consumption coil. Unlike standard AC coils, this version is specifically designed to be driven directly by a PLC (Programmable Logic Controller) output without the need for an interposing relay. It features built-in bidirectional peak limiting diode suppression to protect your sensitive electronics from voltage spikes.
- This contactor comes factory-equipped with 1 NO (Normally Open) and 1 NC (Normally Closed) built-in auxiliary contacts. These allow for essential control logic, such as "seal-in" circuits for pushbuttons or providing a feedback signal to a control system to confirm the contactor has successfully closed.
- Engineered for extreme durability, the LC1D09BD is rated for millions of mechanical cycles. Its "Quick-Break" action minimizes internal arcing, significantly extending the life of the power contacts even in demanding AC-3 motor starting applications where frequent "start/stop" commands are the norm.
- The unit features a compact, space-saving design that mounts easily onto standard 35mm DIN rail or can be screw-mounted directly to a backplate. Its IP20 finger-safe terminals ensure personnel safety during maintenance, and its standardized footprint allows for seamless integration with LRD overload relays.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Indonesia, United States |
|---|

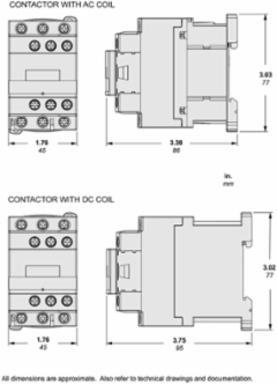

| Depth | 95 mm |
|---|
Complementary Attributes
| Irms Rated Making Capacity | 250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
|---|---|
| Control Circuit Type | DC standard |
| Maximum Motor Phase Current | 9 A |
| Minimum Switching Current | 5 mA for signalling circuit |
| Rated Breaking Capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| Maximum Horse Power Rating | 2 hp at 230/240 V AC 50/60 Hz for 3 phase motors, 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 2 hp at 200/208 V AC 50/60 Hz for 3 phase motors5 hp at 460/480 V AC 50/60 Hz for 3 phase motors7.5 hp at 575/600 V AC 50/60 Hz for 3 phase motors0.33 hp at 115 V AC 50/60 Hz for 1 phase motors |
|---|---|
| Control Circuit Voltage Limits | 0.1...0.25 Uc (-40-70 °C):drop-out DC0.7...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC |
| Maximum Operating Rate | 3600 cyc/h at 60 °C |
| Minimum Switching Voltage | 17 V for signalling circuit |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contactor Application | motor control, resistive load |
| Insulation Resistance | > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit |
| Motor Power Kw | 4 kW at 380/400 V AC 50/60 Hz (AC-3e), 4 kW at 415/440 V AC 50/60 Hz (AC-3e), 5.5 kW at 500 V AC 50/60 Hz (AC-3e), 5.5 kW at 660/690 V AC 50/60 Hz (AC-3e), 2.2 kW at 220/230 V AC 50/60 Hz (AC-3)4 kW at 380/400 V AC 50/60 Hz (AC-3), 4 kW at 415/440 V AC 50/60 Hz (AC-3)5.5 kW at 500 V AC 50/60 Hz (AC-3), 5.5 kW at 660/690 V AC 50/60 Hz (AC-3), 2.2 kW at 220/230 V AC 50/60 Hz (AC-3e)2.2 kW at 400 V AC 50/60 Hz (AC-4) |
| Power Dissipation Per Pole | 1.56 W AC-10.2 W AC-3, 0.2 W AC-3e |
| Utilisation Category | AC-3, AC-3e, AC-1, AC-4 |
| Certificate Agency | UL, CCC, CSA, Marine, UKCA, EAC, CB Scheme |
| [Ui] Rated Insulation Voltage | signalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1 |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1.3256, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 2.7372 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Manufacturing Carbon Footprint | 2.7372 |
| End Of Life Carbon Footprint | 1.3256 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Compatibility Code | LC1D |
| Device Short Name | LC1D |
| Flame Retardance | V1 conforming to UL 94 |
| Mechanical Durability | 30 Mcycles |
| Operating Time | 63 ±15 % ms closing20 ±20 % ms opening |
| Pole Contact Composition | 3 NO |
| Product Or Component Type | contactor |
| Range Of Product | TeSys Deca |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Software Version | v5.9.4 |
| Time Constant | 28 ms |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Inf Motor Phase Current | 9 A |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 75 |
| Width Nominal | 45 mm |
| [Ith] Conventional Free Air Thermal Current | 25 A (at 60 °C) for power circuit10 A (at 60 °C) for signalling circuit |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC |
| Hold-in Power Consumption In W | 5.4-5.4 W 20 °C |
| Package Weight(Lbs) | 525.000 g |
| Warranty (In Months) | 18 |
| Climate Change - Biogenics ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] | -3.6545 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 32.4 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] | -42.8 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 32.484 |
| Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] | -46.454 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] | 1.8369 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 56.153 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 629.17 |
| Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] | 102.38 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 49.135 |
| Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -2356.3 |
| Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4] | 2.5927 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 842.01 |
| Net Use Of Fresh Water (M3) Benefits/Loads Beyond System Boundaries [D] | -3.4802 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 3.1235 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 3.027 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 55.187 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 6814.4 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -828.15 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 576.69 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 3.027 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 50.437 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 6237.7 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -749.28 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 576.69 |
| Water Use (M3 Eq) Manufacturing [A1-a3] | 2.3988 |
| Water Use (M3 Eq) End Of Life [C1-c4] | 1.0738 |
| Customs Code | 8536490065 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 0.6 Mcycles 25 A AC-1 <= 440 V, 2 Mcycles 9 A AC-3 <= 440 V, 2 Mcycles 9 A AC-3e <= 440 V |
| Mechanical Robustness | vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor open 10 Gn for 11 ms), shocks contactor closed 15 Gn for 11 ms) |
| Mounting Support | plate, rail |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, power circuit 1.7 N.m screw clamp terminals Philips No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2 |
| Control Circuit Voltage | 24 V |
| [Ie] Rated Operational Current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Connections - Terminals | power circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: 2 1-4 mm² - cable stiffness: solid without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 1 1-4 mm² - cable stiffness: flexible with cable endcontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: 1 1-4 mm² - cable stiffness: solid without cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solid without cable endscrew clamp terminalspower circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.15128, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.041892 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 32 kg CO2 eq., 32.484 |
| Local Publishable Date | 2026-07-07 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Use Carbon Footprint | 32.484 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1102030EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2538 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-125 A gG at <= 690 V coordination type 1 for power circuit20 A gG at <= 690 V coordination type 2 for power circuit |
| Coil Technology | built-in bidirectional peak limiting diode suppressor |
| Contact Compatibility | M4 |
| Fire Resistance | 850 °C IEC 60695-2-1 |
| Inrush Power In W | 5.4-5.4 W 20 °C) |
| Number Of Poles | 3P |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | THIEC 60068-2-30 |
| Returnability | Yes |
| Signalling Circuit Frequency | 25...400 Hz |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 37 kg CO2 eq. |
| Connections Terminals | screw clamp terminals |
| Pep Code | ENVPEP110230EN |
| Pep Verification Date | 2025-11-12 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 77 mm |
| [Icw] Rated Short-time Withstand Current | 105 A 40 °C - 10 s for power circuit210 A 40 °C - 1 s for power circuit30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit |
| [Uc] Control Circuit Voltage | 24 V24 V DC |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Acidification (Ap) (Mole Of H+ Equiv) Benefits/Loads Beyond System Boundaries [D] | -3.1591 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] | 2.6948 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4] | 1.2974 |
| Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] | 2.7372 |
| Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4] | 1.3256 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 53.464 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 6237.7 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] | -749.28 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 229.41 |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -1411.9 |
| Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] | 0.5454 |
| Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] | 1.0355 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] | 45.547 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] | -5284.3 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 1.7467 |
| Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -5.8476 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 3.027 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] | 1.8369 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 56.83 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 1.723 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] | -78.868 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 3.027 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] | 1.8369 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 56.153 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.2621 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -78.454 |
| Water Use (M3 Eq) Operational Energy Use [B6] | 2.3527 |
| Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D] | -149.47 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1102030EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-12 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Climatic Withstand | IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 36.739972 |
| Environmental Disclosure | ENVPEP110230EN |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C-40-60 °C60-70 °C with derating |
| Pep Code | ENVPEP110230EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | contactor |
|---|
| Range Of Product | TeSys Deca |
|---|
ETIM
| ETIM 8 | EC000066 |
|---|
| ETIM 9 | EC000066 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$207.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$207.97/ EA
Loading add to cart quantity...
