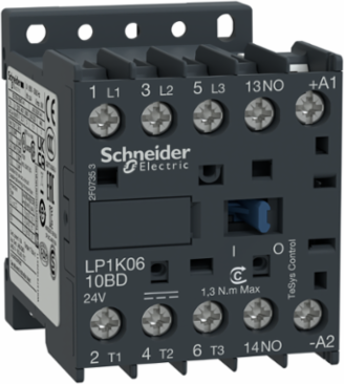

TeSys K Contactor 3P 6A 440V AC-3 1NO Aux 110V DC Coil
Schneider Electric

Schneider Electric LP1K0610FD TeSys K Contactor 3P 6A 440V AC-3 1NO Aux 110V DC Coil

  • MPN: LP1K0610FD
  • PPN: SCH-LP1K0610FD

CAD

$69.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The TeSys K Contactor from Schneider Electric is engineered for reliable automation and control in various industrial applications. This three-pole (3P) contactor, rated for 6A at 440V AC-3, provides efficient performance and dependable switching for motor control. With a normally open (1NO) auxiliary contact and a 110V DC coil, it ensures versatility for integration into your control systems. Designed to meet the rigorous demands of modern electrical installations, this contactor stands out for its durability and efficiency, making it an essential component for enhancing operational reliability and efficiency in any setup.

Documentation & Downloads

Specifications

Additional

Rated Operational Current
6 A (at <60 °C) at <= 440 V AC AC-3 and AC-3e for power circuit
Rated Making Capacity
110 A AC for power and signalling circuits
Rated Short-Time Withstand Current
Power circuit: 90 A 50 °C - 1 s, 85 A 50 °C - 5 s, 80 A 50 °C - 10 s, 60 A 50 °C - 30 s, 45 A 50 °C - 1 min, 40 A 50 °C - 3 min, 20 A 50 °C - >= 15 min; Signalling circuit: 80 A - 1 s, 90 A - 500 ms, 110 A - 100 ms
Motor Power
1.5 kW (220-230 V), 2.2 kW (380-415 V), 3 kW (440-690 V) AC-3, AC-3e, AC-4
Control Circuit Voltage
110 V DC
Minimum Switching Current
5 mA for signalling circuit
Average Impedance
3 mOhm (Ith 20 A, 50 Hz) for power circuit
Hold-in Power Consumption
3 W (20 °C)
Electrical Durability
1.3 M cycles (6 A AC-3 <= 440 V), 0.05 M cycles (36 A AC-4 <= 440 V)
Safety Reliability Level
B10d = 1,369,863 cycles contactor with nominal load EN/ISO 13849-1

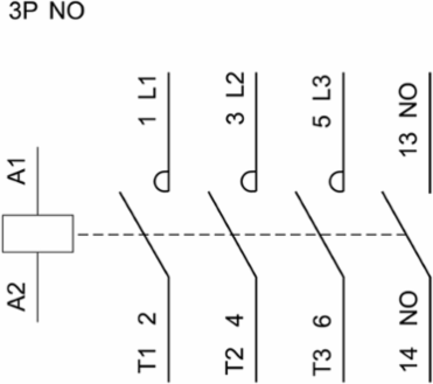

Auxiliary Contact Composition
1 NO
Pole Contact Composition
3 NO
Tightening Torque
0.8 to 1.3 N.m

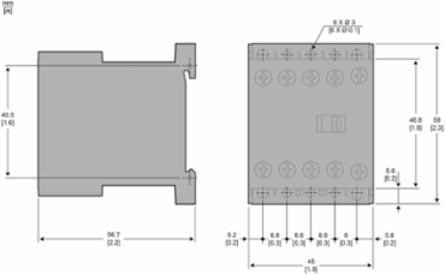

Height
58 mm (2.28 in)
Depth
57 mm (2.24 in)
Material & Flame Retardance
Flame retardant V1 UL 94
Overvoltage Category
III
Insulation Resistance
> 10 MOhm for signalling circuit
Standards
EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4
Ambient Air Temperature for Operation
-25 to 50 °C (-13 to 122 °F)
Operating Altitude
2000 m (6562 ft) without derating
Compliance
REACH free of SVHC, EU RoHS Compliant, Toxic heavy metal free, Mercury free, China RoHS Compliant
Rated Operational Voltage<= 690 V AC <= 400 Hz power and signalling circuits
Rated Breaking Capacity110 A at 220-440 V, 80 A at 500 V, 70 A at 660-690 V conforming to IEC 60947
Utilisation CategoryAC-3, AC-3e, AC-4
Conventional Free Air Thermal Current20 A (at 60 °C) for power circuit, 10 A (at 50 °C) for signalling circuit
Control Circuit Voltage Limits0.8 to 1.15 Uc operational (at <50 °C), >= 0.10 Uc drop-out (at <50 °C)
Minimum Switching Voltage17 V for signalling circuit
Inrush Power3 W (20 °C)
Heat Dissipation1.3 W
Mechanical Durability10 M cycles
Poles3P
Auxiliary Contacts TypeInstantaneous 1 NO
Terminal TypeScrew clamp terminals; 0.34 to 4 mm² solid/flexible wire size range
MountingRail, Plate
Width45 mm (1.77 in)
Net Weight0.225 kg (0.50 lb)
Rated Impulse Withstand Voltage8 kV
Rated Insulation Voltage600 V UL 508 and 690 V IEC 60947-4-1 for power and signalling circuits
IP Degree of ProtectionIP2X
Product CertificationsCB, CCC, UL, CSA, EAC, CE, UKCA
Ambient Air Temperature for Storage-50 to 80 °C (-58 to 176 °F)
Country of OriginFrance
Warranty18 months
