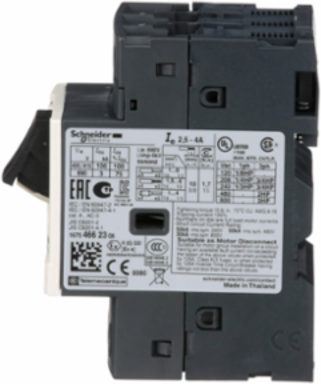

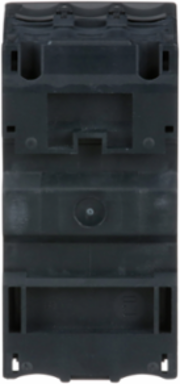

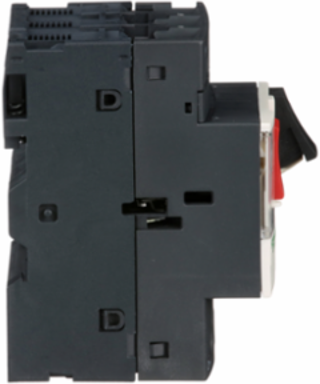

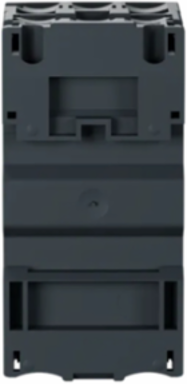

Schneider Electric GV2ME08 TeSys Deca Motor Circuit Breaker 3P 2.5-4A Thermal Magnetic
- MPN: GV2ME08
- PPN: SCH-GV2ME08
CAD
$144.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV motor circuit breaker, 3 poles (3P), 4A/690V, for 3-phase motor applications 1.1-1.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 2.5-4A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Features
- The Schneider GV2ME08 is a TeSys Deca manual motor starter designed to provide integrated thermal-magnetic protection. This 3-pole unit serves as a combined circuit breaker and overload relay, specifically engineered to shield motors from phase failure, short circuits, and sustained overloads that could lead to winding failure.
- This model features a precise adjustable thermal setting range of 2.5 to 4.0 Amps. By using the front-facing dial, you can dial in the exact Full Load Amps (FLA) of your motor. Its "Class 10" trip characteristic ensures your motor is protected against overheating while allowing for the normal temporary inrush current during startup.

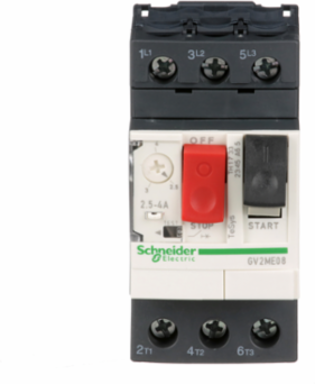

- Featuring dedicated Start (I) and Stop (O) push-buttons, the GV2ME08 provides intuitive local manual control. The buttons provide clear tactile feedback and are designed for high-cycle durability, making this unit an ideal local "at-motor" disconnect for small pumps, fans, and conveyor systems.
- The GV2ME08 is rated for high breaking capacities, capable of safely interrupting up to 100kA at 230V or 100kA at 400/415V. This ensures that in the event of a catastrophic short circuit, the starter will safely clear the fault, protecting both your personnel and your downstream industrial equipment.
- With a standard 45mm width, this starter is designed for maximum density in control panels. It snaps directly onto 35mm DIN rails and eliminates the need for a separate fuse block and overload relay, allowing you to reduce the overall size of your enclosure and simplify your wiring layout.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 4 A
- Motor Power
- 1.1 KW 400/415 V AC 50/60 Hz 1.5 KW 400/415 V AC 50/60 Hz 1.5 KW 500 V AC 50/60 Hz 2.2 KW 500 V AC 50/60 Hz 3 KW 690 V AC 50/60 Hz 2.2 kW 690 V AC 50/60 Hz
- Rated Service Short-Circuit Breaking Capacity
- 100% 230/240 V AC, 400/415 V AC, 440 V AC, 500 V AC IEC 60947-2; 75% 690 V AC IEC 60947-2
- Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Phase Failure Sensitivity
- Yes IEC 60947-4-1
- Trip Unit Technology
- Thermal-magnetic
- Power Dissipation Per Pole
- 2.5 W
- Mechanical Durability
- 100000 cycles
- IK Degree Of Protection
- IK04
- Width
- 45 mm (1.77 in)
- Depth
- 78.5 mm (3.09 in)
- Ambient Air Temperature For Operation
- -20 to 60 °C (-4 to 140 °F)
- Operating Altitude
- 2000 m (6562 ft)
- Standards
- EN/IEC 60947-2, EN/IEC 60947-4-1
- RoHS Directive
- Compliant with exemptions
- Sustainable Offer Status
- Green Premium
Thermal Protection Adjustment Range2.5-4 A IEC 60947-4-1
Breaking Capacity100 kA Icu 230/240 V AC, 400/415 V AC, 440 V AC, 500 V AC 50/60 Hz IEC 60947-2
Magnetic Tripping Current51 A
Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Poles3P
Suitability For IsolationYes IEC 60947-1 § 7-1-6
Control TypePush-button
Electrical Durability100000 cycles AC-3 415 V In, AC-3e 415 V In
Mechanical RobustnessShocks 30 Gn for 11 ms; Vibrations 5 Gn, 5-150 Hz
IP Degree Of ProtectionIP20 IEC 60529
Height89 mm (3.50 in)
Net Weight0.26 kg (0.57 lb)
Ambient Air Temperature For Storage-40 to 80 °C (-40 to 176 °F)
Fire Resistance960 °C IEC 60695-2-11
Product CertificationsCCC, UL, CSA, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
Mercury FreeYes
ColourDark grey
