Schneider Electric LP4K0610FW3 TeSys K Contactor 3P 6A 440V 1 NO Auxiliary 110V DC Coil
- MPN: LP4K0610FW3
- PPN: SCH-LP4K0610FW3
CAD
$98.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This TeSys K contactor from Schneider Electric is engineered for reliable operation, making it an essential component in automation and control applications. Designed to handle three poles with a current rating of 6A at 440V, it provides excellent performance for a variety of electrical circuits. Featuring a single normally open (NO) auxiliary contact and a 110V DC coil, this model ensures efficient switching and control, contributing to enhanced system reliability. Ideal for use in industrial and commercial settings, its robust construction supports both longevity and consistent performance, making it a dependable choice for modern panel builders.
Documentation & Downloads
Specifications
Additional
- Rated Short-Time Withstand Current
- 90 A 50 °C - 1 s for power circuit; 85 A 50 °C - 5 s; 80 A 50 °C - 10 s; 60 A 50 °C - 30 s; 45 A 50 °C - 1 min; 40 A 50 °C - 3 min; 20 A 50 °C - >= 15 min; 80 A - 1 s signalling circuit; 90 A - 500 ms signalling circuit
- Rated Operational Current
- 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Poles
- 3P
- Control Circuit Voltage
- 110 V DC

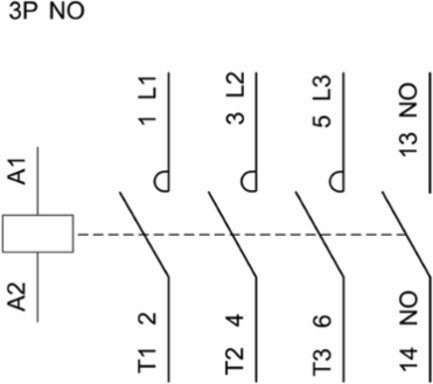

- Power Pole Contact Composition
- 3 NO
- Rated Making Capacity
- 110 A AC IEC 60947
- Overvoltage Category
- III
- Ambient Air Temperature for Operation
- -25 to 50 °C
- Operating Altitude
- 2000 m without derating
- Tightening Torque
- 0.8-1.3 N.m screw clamp terminals

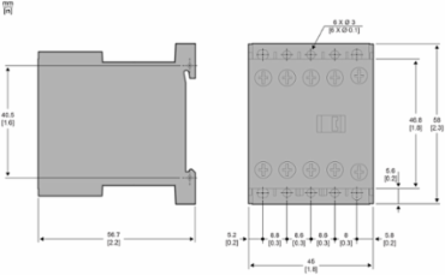

- Width
- 45 mm (1.77 in)
- Net Weight
- 0.235 kg (0.52 lb)
- Electrical Durability
- 1.3 million cycles 6 A AC-3 <= 440 V
- IP Degree of Protection
- IP2X
- RoHS Compliance
- Yes
- Toxic Heavy Metal Free
- Yes
Rated Breaking Capacity110 A at 220...230 V; 110 A at 380...400 V; 110 A at 415 V; 110 A at 440 V; 80 A at 500 V; 70 A at 660...690 V AC IEC 60947
Motor Power1.5 kW 220...230 V AC 50/60 Hz AC-3; 2.2 kW 380...415 V AC 50/60 Hz AC-3; 3 kW 440/690 V AC 50/60 Hz AC-3
Voltage<= 690 V AC <= 400 Hz
Auxiliary Contact Composition1 NO
Conventional Free Air Thermal Current20 A (at 60 °C) for power circuit
Rated Insulation Voltage600 V UL 508; 690 V IEC 60947-4-1
Rated Impulse Withstand Voltage8 kV
Ambient Air Temperature for Storage-50 to 80 °C
MountingRail, Plate
Height58 mm (2.28 in)
Depth57 mm (2.24 in)
Mechanical Durability30 million cycles
Safety Reliability LevelB10d = 1,369,863 cycles nominal load
Compliance StandardsEN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; CB; CCC; UL; CSA; EAC; CE; UKCA
Mercury FreeYes
