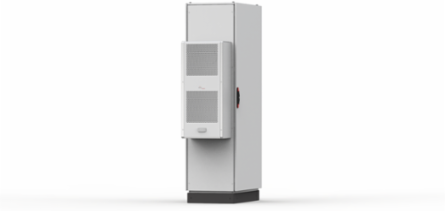

nVent Hoffman CUVN03602SS Stainless Steel Cooling Unit 360W, 230V, IP54, 43.10 lb
- MPN: CUVN03602SS
- UPC: 783510462321
- PPN: HOF-CUVN03602SS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This vertical cooling unit, CUVN is available in many different sizes for different cooling requirements. This Vertical Mounted Cooling Units, CUVN, CUVN03602SS item measures 443x324x206mm has a material of Steel color Unpainted, finish Plated.
Features
- Vertical cooling unit with smart energy management, available in a wide range of sizes for different cooling capacities, with a IP 54 protection degree
- Customers can choose the cooling unit that meets their requirements the most, removing any extra costs due to oversizing Smart energy management reduces the cooling units energy consumption by up to 23%
- The efficient cooling unit allows customers to optimise the enclosure's design ensuring that the correct cooling unit is chosen and it hasn't been over specified
- The smart energy management and ease of installation will reduce both operational and installation costs
- To minimise how much energy the cooling unit consumes, it is recommended to install the door switch, DSW01
- Once installed, the door switch will turn the cooling unit off, once the door is opened
- Voltage: 200-235 V
- Alternating current frequency: 50~60 Hz
- Power of the fan: 22 Watt
- Consumption current: 0.28A / 0.56A
- Air circulation: 4.4 / 8.8 m³/min
- Measurement limits: -50 ºC ... +125 ºC
- Measurement accuracy: +/-0.5ºC
- Working temperature: 0...+50ºC
- Relative air humidity (air temp. +35C): 80%
- Noise level: 35 decibel
- Lifetime: 30.000 hours
- Switch: No
- Thermostat: Yes
- Pack quantity: 1 unit including power cable (1.5 m) with Shuko plug and sensor cable (1.2 m); version with 4 fans is supplied with a depth fixing bracket
Documentation & Downloads
Specifications
Key Specifications
- Length
- 17.82 inch
- Height
- 13.38 inch
- Height imperial (H) (inch)
- 17.44
- Width imperial (W) (inch)
- 12.76
- Depth imperial (D) (inch)
- 8.11
- Protection Rating
- IP54
- Finish WCS-6868
- Plated
- Style WCS-6918
- Cooling capacity L35L35: 360 - 380; L35L50: 220 - 240
- Frequency WCS-429335 (hertz)
- 50/60
Width13.13 inch
Weight43.10 pound
Height metric (H) (millimetre)443
Width metric (W) (millimetre)324
Depth metric (D) (millimetre)206
MaterialSteel
ColorUnpainted
Phase Quantity1
