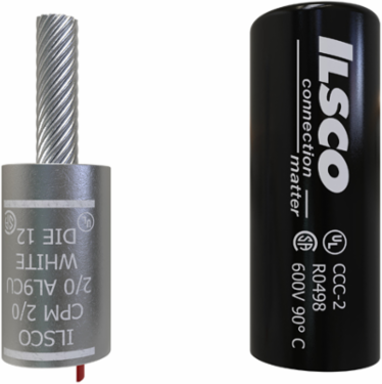

ILSCO CPM-2/0 Copper Compression Pigtail Adaptor, Conductor Size 2/0, Tin Plated, UL, CSA
- MPN: CPM-2/0
- UPC: 783669008500
- PPN: ILC-CPM-2/0
CAD
$55.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Compression Pigtail Adaptor, Conductor Size 2/0, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.086 in | 27.5844 mm |
|---|---|
| Weight | 0.092 lbs |
| Length | 4 in | 101.6 mm |
|---|---|
| Width | 1.086 in | 27.5844 mm |
Voltage
| Voltage Rating | 600 V |
|---|
| Voltage Rating without cover | 35 kV |
|---|
Dimensions
| Barrel Length (IN) | 1.594 |
|---|---|
| Cover Length (IN) | 2.844 |
| Height BX (IN) | 2 |
| Inside Diameter (IN) | 0.44 |
| Length (mm) | 101.6 |
| Outside Diameter (IN) | 0.906 |
| Pin Diameter (IN) | 0.332 |
| Pin Length (IN) | 1.25 |
| Weight BX (LB) | 2.415 |
| Width (mm) | 27.5844 |
| Barrel Length (mm) | 40.4876 |
|---|---|
| Cover Length (mm) | 72.2376 |
| Height (mm) | 27.5844 |
| Inside Diameter (mm) | 11.176 |
| Mounting Hole Spacing (mm) | 0 |
| Outside Diameter (mm) | 23.0124 |
| Pin Diameter (mm) | 8.4328 |
| Pin Length (mm) | 31.75 |
| Width BX (IN) | 6.1875 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 941R |
| UL File Number | E62525 |
Additional Class Attributes
| Barrel Marking | Ink |
|---|---|
| Connecting Angle | 180° |
| Contains DE-OX® | Yes |
| ILSCOs Die Index Number | 12 |
| Replacement Part(s) | Cover |
| Barrel Type | Standard |
|---|---|
| Connection | Compression |
| Flared End | No |
| Number of Conductors | 1 |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Insulation | Supplied with insulating cover |
| Connector Finish | Tin |
|---|---|
| Material | Copper |
Conductor Ranges
| Approximate Pin Size | 1 AWG |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 2/0 Str |
| Conductor Range AL Stranded (Primary, run, main, line) | 2/0 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366900850 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| NEMA Code | S-588-3 |
Color
| Color | Silver |
|---|
| Color Code | White |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
