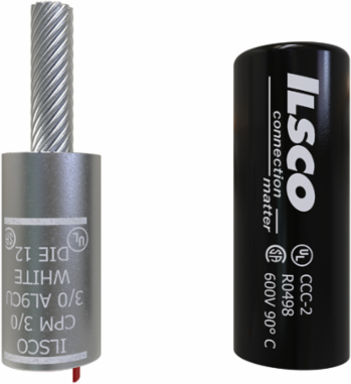

ILSCO CPM-3/0 Copper Compression Pigtail Adaptor, Conductor Size 3/0, Tin Plated, UL, CSA
- MPN: CPM-3/0
- UPC: 783669008524
- PPN: ILC-CPM-3/0
CAD
$60.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Compression Pigtail Adaptor, Conductor Size 3/0, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.086 in | 27.5844 mm
- Weight
- 0.109 lbs
Length4.125 in | 104.775 mm
Width1.086 in | 27.5844 mm
Voltage
- Voltage Rating
- 600 V
Voltage Rating without cover35 kV
Dimensions
- Barrel Length (IN)
- 1.875
- Cover Length (IN)
- 2.844
- Height BX (IN)
- 2
- Inside Diameter (IN)
- 0.552
- Length (mm)
- 104.775
- Outside Diameter (IN)
- 0.906
- Pin Diameter (IN)
- 0.373
- Pin Length (IN)
- 1.375
- Weight BX (LB)
- 2.732
- Width (mm)
- 27.5844
Barrel Length (mm)47.625
Cover Length (mm)72.2376
Height (mm)27.5844
Inside Diameter (mm)14.0208
Mounting Hole Spacing (mm)0
Outside Diameter (mm)23.0124
Pin Diameter (mm)9.4742
Pin Length (mm)34.925
Width BX (IN)6.1875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number941R
UL File NumberE62525
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- Yes
- ILSCOs Die Index Number
- 12
- Replacement Part(s)
- Cover
Barrel TypeStandard
ConnectionCompression
Flared EndNo
Number of Conductors1
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Supplied with insulating cover
Connector FinishTin
MaterialCopper
Conductor Ranges
- Approximate Pin Size
- 1/0 AWG
- Conductor Range CU Stranded (Primary, run, main, line)
- 3/0 Str
Conductor Range AL Stranded (Primary, run, main, line)3/0 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900852
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
Color
- Color
- Silver
Color CodeWhite
Environment and Temperature
- Temperature Rating
- 90°C
