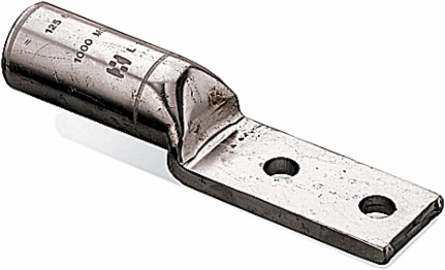

Homac L 500 NL Copper Compression Two Hole NEMA Lug

Copper Compression Two Hole NEMA Lug
  • MPN: L 500 NL
  • UPC: 783786739271
  • PPN: T-B-L 500 NL

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$95.76/ EA

Description

Copper Compression Lug, 500 kcmil, Copper, Bolt 1/2 inch, Two Hole NEMA Pad

Features

  • Produced from Seamless Electrolytic, High-Conductivity Copper Tubing for High Conductivity and Minimal Voltage Drop.
  • Tin Plated to Resist Corrosion

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121448 Wire or cable compression connector
Brand Name
Homac
Special Features
Marked with Conductor Size and Die Reference.
Conductor Range
500 kcmil Copper
Finish
Tin Plated
Bolt Size
1/2 inch
IGCC4668 Wire or cable compression connector
TypeCopper Compression Two Hole NEMA Lug
SizeLength 6.812 inch. Pad 1.522 inch wide x 3.062 inch.
MaterialCopper
InsulationNone

Packaging

Outer Quantity
25
Weight Uom
1 lbs. Each
Outer Dimensions (inches)1x1x1
