Burndy YA27LNT38 Copper Terminal Connector 3/0 AWG, 3/8 Inch Stud, 2.64 Inch Length
- MPN: YA27LNT38
- UPC: 781810018538
- PPN: BUR-50226T
CAD
$46.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Flex Conductor Standard Barrel Narrow, 3/0 AWG, 3/8 in, 2.73 in L.
Documentation & Downloads
Specifications

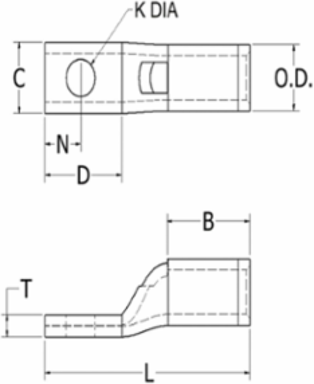

Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - D inch
- 1.14 in
- Dimension - Length Overall inch
- 2.64 in
- Dimension - Outside Diameter inch
- 0.62 in
- Dimension - Strip Length inch
- 1-1/16
- Dimension - Stud Size inch
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.00 in
Dimension - Bolt Size fraction3/8
Dimension - L Length Overall mm67 mm
Dimension - N inch0.38 in
Dimension - Pad Width inch0.73 in
Dimension - Stud Size fraction3/8
Dimension - Z inch0.73 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 150 (61) Navy
- Conductor - Copper Str Size Range
- 2/0 AWG
Conductor - Copper Str Navy Size150 (61) Navy
Conductor - Copper Str Size2/0 AWG
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810018538
Color CodeOrange
Die Index14
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
PlatedY
Sub BrandHYLUG
TypeYA-L-NT, Code Conductor Standard Barrel Narrow Tongue
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
