Burndy YA28LNT14 Copper Terminal Connector 4/0 AWG, 1/4 Inch Stud, Length 2.60 Inch, Grit 15
- MPN: YA28LNT14
- UPC: 781810235089
- PPN: BUR-25019857
CAD
$43.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression narrow toungue std barrel-Code conductor, Single hole/W/ insp window, 4/0 AWG, 1/4" stud, Purple15 index
Documentation & Downloads
Specifications

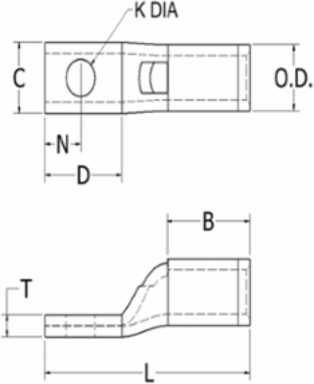

Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - D inch
- 1.07 in
- Dimension - Length Overall inch
- 2.60 in
- Dimension - Outside Diameter inch
- 0.69 in
- Dimension - Strip Length inch
- 1-1/8
- Dimension - Z inch
- 0.76 in
Dimension - B Length inch0.88 in
Dimension - Bolt Size fraction1/4
Dimension - L Length Overall mm66 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.76 in
Dimension - Stud Size inch1/4
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 200 (61) Navy
- Conductor - Copper Str Size Range
- 4/0 AWG
Conductor - Copper Str Navy Size200 (61) Navy
Conductor - Copper Str Size4/0 AWG
General
- Color Code
- Purple
- Die Index
- 15
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- UPC
- 781810235089
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
