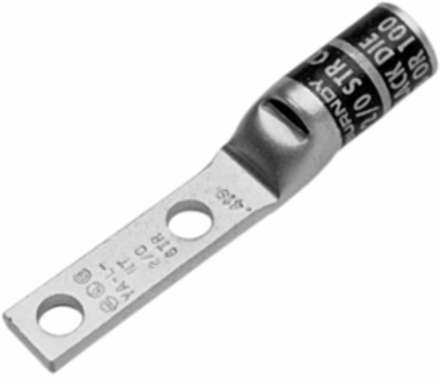

Burndy YA39L2NT38 Copper Terminal Connector, 750 kcmil, 3/8 Inch Stud Size, 4.34 Inch Long

MPN: YA39L2NT38
UPC: 781810503638
PPN: BUR-510401

$139.88

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Code Conductor Standard Barrel Narrow, 750 kcmil, 3/8 in, 4.34 in L.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	1-7/16 in
Dimension - Bolt Hole Size inch	0.39 in
Dimension - D inch	2.06 in
Dimension - Length Overall inch	4.34 in
Dimension - Outside Diameter inch	1.30 in
Dimension - Strip Length inch	1-1/2
Dimension - Z inch	0.56 in

Dimension - B Length inch	1.42 in
Dimension - Bolt Size fraction	3/8
Dimension - L Length Overall mm	110 mm
Dimension - N inch	0.50 in
Dimension - Pad Width inch	1.63 in
Dimension - Stud Size inch	3/8
Physical Attribute - Tongue Angle	Straight

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Size Range	750 kcmil

Conductor - Copper Str Size	750 kcmil

General

Application	For Code Conductor
Connector Type	Terminal
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	2
Plated	Y
Sub Brand	HYLUG
Type	YA-L-2NT, Code Conductor Standard Barrel Narrow Tongue
