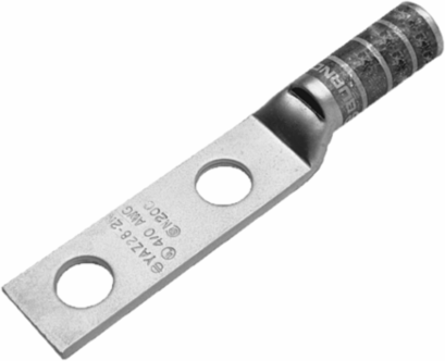

Burndy YAZ392NT38 Copper Terminal Connector, 750 Kcmil, 3/8 Inch Stud, 2 Holes, 5.82 Inch Length
- MPN: YAZ392NT38
- UPC: 781810211427
- PPN: BUR-25017198
CAD
$188.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Terminal, 2 Holes/W/insp W, 750 Kcmil, 3/8" stud, Tin plated, Black, 24 Index.
Documentation & Downloads
Specifications

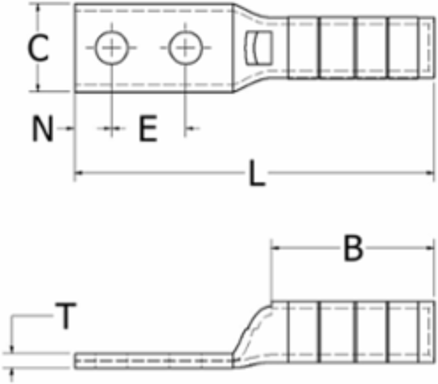

Dimensions
- Dimension - B Length fraction
- 2-7/8 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - L Length Overall mm
- 148 mm
- Dimension - N inch
- 0.50 in
- Dimension - Pad Width inch
- 1.63 in
- Dimension - Stud Size inch
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.88 in
Dimension - Bolt Size fraction3/8
Dimension - Length Overall inch5.82 in
Dimension - Outside Diameter inch1.30 in
Dimension - Strip Length inch2-15/16
Dimension - Z inch0.53 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Size
- 750 kcmil
Conductor - Copper Str Size Range750 kcmil
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810211427
Color CodeBlack
Die Index24
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
PlatedY
Sub BrandHYLUG
TypeYAZ-2N, Code Conductor Long Barrel
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
