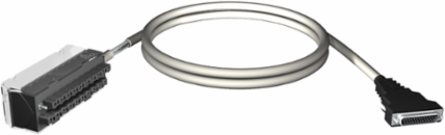

Schneider Electric BMXFTA1522 preformed cordset, Modicon X80, 20 way terminal, SUB-D25 connector, 1.5m, HART

preformed cordset, Modicon X80, 20 way terminal, SUB-D25 connector, 1.5m, HART
  • MPN: BMXFTA1522
  • PPN: SCH-BMXFTA1522

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$214.11/ EA

Description

preformed cordset, Modicon X80, 20 way terminal, SUB-D25 connector, 1.5m, HART

Specifications

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes

Specifications

Electrical Connection
1 connector SUB-D 25 sub-base side || 1 removable terminal block, 20 ways module side
Cable Length
1.5 m
Accessory / Separate Part Type
preformed cordset
Range Of ProductModicon X80
Product CompatibilityABE7CPA31 || ABE7CPA03 || BMXAHI0812 || ABE7CPA02

Contractual warranty

Warranty
18 months

Complementary

Net Weight
0.32 kg

Downloads
