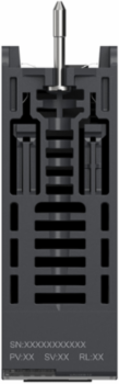

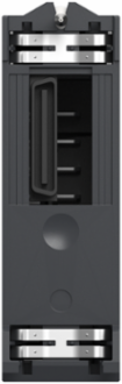

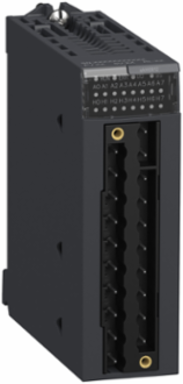

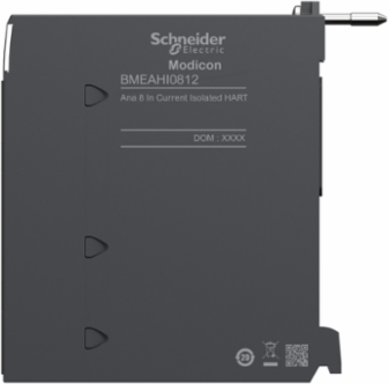

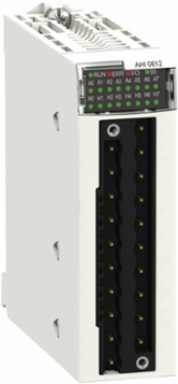

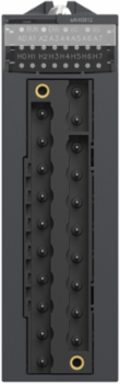

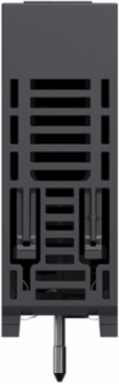

Schneider Electric BMEAHI0812 Modicon X80 Analog Input Module, 8 HART Inputs, 4-20 mA, 15-Bit Resolution

  • MPN: BMEAHI0812
  • PPN: SCH-BMEAHI0812
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3538.69

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

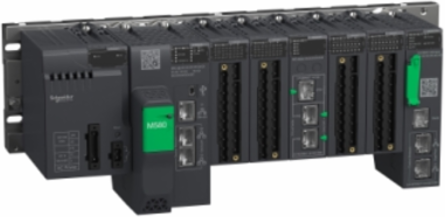

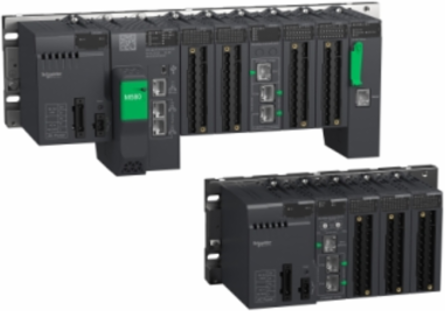

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a current of 4mA to 20mA input type with I/O mapping function. This product is robust, high quality and based on the latest innovative technology. It is furnished with Telefast and 20-way terminal block for electrical connection. It weighs 0.233kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with BMEP58xxx processor, BMXFTB20xxx terminal block, ABE7CPA31, BMEXBPxxx backplane, ABE7CPA02, ABE7CPA03, BMECRA31210 head module. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Electrical Connection20 ways terminal block, Telefast
    Measurement Error<= 0.3 % of full scale 0...60 °C, <= 0.3 % of full scale 0...60 °C, 0.15 % of full scale 25 °C, <= 0.3 % of full scale 0...60 °C, <= 0.3 % of full scale 0...60 °C
    Carbon Footprint Of The Distribution Phase [A4]0.0299448727, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0609778424, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]108 kg CO2 eq., 107.9458659218
    Local Publishable Date2026-01-23
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Checksbroken wire detection
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective Treatmentstandard version
    ReturnabilityYes
    Sustainable PackagingYes
    Topologypoint-to-point
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Isolation Voltage1000 V DC 60 s between channels1400 V DC 60 s between channels and ground, 1400 V DC 60 s between channels and bus
    Certificate AgencyCE, RCM, CSA, EAC, Merchant Navy, UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.4063431515
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]29 kg CO2 eq., 29.2592606061
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Application Specific I OHART
    Function AvailableI/O mapping
    Product Or Component Typeanalog input module
    Range Of ProductModicon X80
    Software Versionv5.9.4
    Temperature Drift50 ppm/°C
    Total Lifecycle Carbon Footprint138 kg CO2 eq.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh165.564
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Application Specific I/OHART
    Package Weight(Lbs)227.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint137.7023923945
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Product CompatibilityBMEP58... processor, BMXFTB20... terminal block, ABE7CPA31, BMEXBP... backplane, ABE7CPA02, ABE7CPA03, head module BMECRA31210
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-60 °C
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typeanalog input module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001420
    ETIM 9EC001420

    Input Attributes

    Analogue Input Number8
    Analogue Input Typecurrent 4...20 mA
    Input Output Isolationisolated
    Analogue Input Resolution15 bits + sign
    Input Impedance250 Ohm internally protective resistor (3.6 to 50 Ohm)
