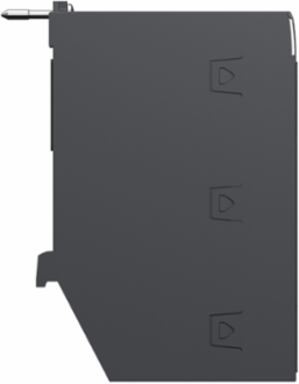

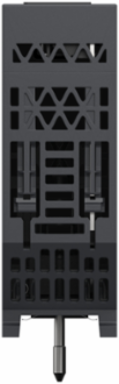

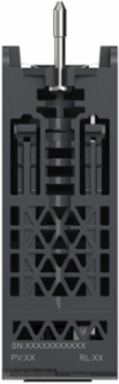

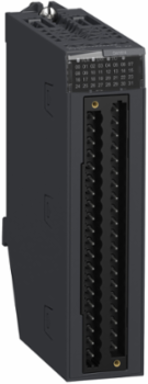

Schneider Electric BMXDAI1614 Modicon X80 Discrete Input Module, 16 Isolated Inputs, 100-120V AC
- MPN: BMXDAI1614
- PPN: SCH-BMXDAI1614
CAD
$1187.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The BMXDAI1614 Discrete Input Module from Schneider Electric is an essential component for enhancing your automation systems. Featuring 16 isolated inputs, this module is designed to facilitate secure and reliable data transmission, making it an ideal choice for both industrial and commercial applications. Its ability to operate within a voltage range of 100-120V AC ensures compatibility with a wide array of devices, streamlining integration into existing setups. This versatile module not only boosts the efficiency of your operations but also enhances system safety and performance, reflecting Schneider Electric's commitment to quality and innovation in industrial automation solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth86 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC<= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC
- Local Signalling
- 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
- Voltage Detection Threshold
- < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, > 85 V AC sensor OK, > 85 V AC sensor OK, > 85 V AC sensor OK, > 85 V AC sensor OK< 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, > 85 V AC sensor OK, > 85 V AC sensor OK
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.35209
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 17 kg CO2 eq., 16.955
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 16.955
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2402023EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Ac Activation Filtering Time
- 10 ms
- Current State 0 Guaranteed
- <= 1 mA<= 1 mA
- Device Application
- Industrial Application
- Isolation Between Channels
- 1780 Vrms for 1 minute
- Mtbf Reliability
- 3700000 H
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- standard version
- Returnability
- Yes
- Shock Resistance
- 30 gn
- Sustainable Packaging
- Yes
- Typical Current Consumption
- 76 mA DC
- Voltage State 0 Guaranteed
- <= 20 V<= 20 V
- Pep Code
- ENVPEP2402023EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Width Nominal
- 32 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 16.933
- Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]
- 16.955
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 204.55
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 214.06
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
- -3.2647
- Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
- 1.7412
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 120.49
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 42.77
- Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
- 0.6676
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 7.4936
- Net Use Of Fresh Water (M3) End Of Life [C1-c4]
- 1.6084
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 1.612
- Terrestrial Eutrophication (Mole Of N Equiv) Distribution [A4]
- 0.0013
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 3.5137
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 2.8462
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 2.9406
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 7.5229
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.0265
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 3.5137
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 2.6557
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 2.6708
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 2.8119
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -2.5506
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 34.086
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 4.3543
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
MarkingCE, UKCA, cULus, EAC, RCM
Carbon Footprint Of The Distribution Phase [A4]0.03923, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.25513, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]11 kg CO2 eq., 10.589
Local Publishable Date2026-01-23
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Use Carbon Footprint10.589
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Ac Deactivation Filtering Time20 ms
Current State 1 Guaranteed>= 2 mA>= 2 mA
Dielectric Strength1780 V AC 50/60 Hz 1 min
Isolation Between Channels And Bus1780 Vrms for 1 minute
Power Dissipation In W5 W
Product Or Component Typediscrete input module
Range Of ProductModicon X80
Sensor Power Supply85-132 V
Software Versionv5.9.4
Total Lifecycle Carbon Footprint28 kg CO2 eq.
Vibration Resistance3 gn
Voltage State 1 Guaranteed>= 79 V>= 79 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Height Nominal134.6 mm
Certificate AgencyIEC 61131-2
Package Weight(Lbs)297.000 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]10.579
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]10.589
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]2.6557
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]2.6708
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]214.85
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]136.85
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-3.6889
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-0.3664
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]32.059
Materials For Recycling (Kg) Installation [A5]0.1402
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]7.865
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-3.706
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle3.5137
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]212.07
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]248.15
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-4.2912
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]34.086
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle3.5137
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]201.03
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]214.06
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-3.2647
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]2.8119
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]4.711
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]1.5241
Water Use (M3 Eq) End Of Life [C1-c4]61.446
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 28.190450000000002
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2402023EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Circularity ProfileENVEOLI2402023EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 0-60 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Input Attributes
- Discrete Input Frequency
- 50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
- Discrete Input Current
- 2 mA at 100...120 V AC
- Discrete Input Voltage
- 100...120 V ACisolated
- Input Wiring Mode
- 2 or 3 wires
Discrete Input Numberisolated conforming to IEC 60947-5-2 at 100...120 V AC, isolated conforming to IEC 61131-2 Type 1 at 100...120 V AC16
Discrete Input Logicpositive logic (sink)
Input Impedance14000 Ohm
