Telemecanique Sensors

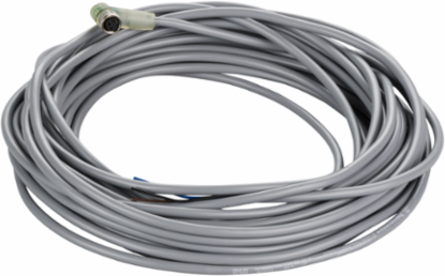

Telemecanique Sensors XZCPV0766L10 Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PVC 10 m

  • MPN: XZCPV0766L10
  • PPN: TES-XZCPV0766L10

CAD

$87.08

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PVC 10 m

Documentation & Downloads

Specifications

Key Specifications

Series Namegeneral purpose
Accessory / Separate Part Categorycabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors

Complementary

Collar Materialmetal
Cable Outer Diameter4.6 mm
Wire Insulation MaterialPVC
Cable Connector Fixingscrew-on
[In] Rated Current3 A
Status Led2 PNP LEDs
Contact Resistance5000 µOhm
Electrical Connectionelbowed female connector M8, 3 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage30 V AC || 36 V DC
Cable Length10 m
Cable Composition3 x 0.25 mm²
Net Weight0.36 kg

Environment

Product CertificationscULus
Ambient Air Temperature For Storage-25-80 °C
Ambient Air Temperature For Operation-25-80 °C static
Ip Degree Of ProtectionIP67 || IP65

Contractual warranty

Warranty18 months

Offer Sustainability

Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PVC 10 m
