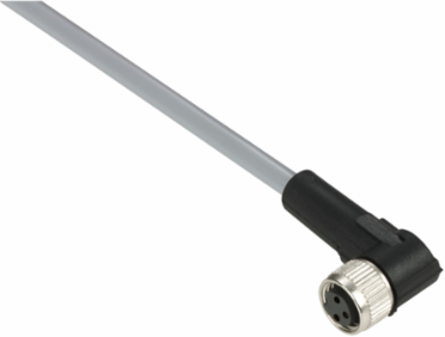

Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PVC 10 m
Telemecanique Sensors

Telemecanique Sensors XZCPV0666L10 Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PVC 10 m

  • MPN: XZCPV0666L10
  • PPN: TES-XZCPV0666L10
  • UNSPSC: 39121528

CAD

$67.50

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This connection cable has a PVC cable (10 meter cable). This pre-wired pigtail cable with one connector helps you to reduce your stock of spare process parts. It can can fit most installations thanks to its 10m length.

Documentation & Downloads

Specifications

Key Specifications

Series Name
general purpose
Accessory / Separate Part Category
cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors

Complementary

Collar Material
metal
Cable Outer Diameter
4.6 mm
Wire Insulation Material
PVC
Cable Connector Fixing
screw-on
[In] Rated Current
3 A
Status Led
without
Contact Resistance
5000 µOhm
Electrical Connectionelbowed female connector M8, 3 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Length10 m
Cable Composition3 x 0.25 mm²
Net Weight0.326 kg

Environment

Product Certifications
cULus
Ambient Air Temperature For Storage
-25-80 °C
Ambient Air Temperature For Operation-25-80 °C static
Ip Degree Of ProtectionIP67 || IP65

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
