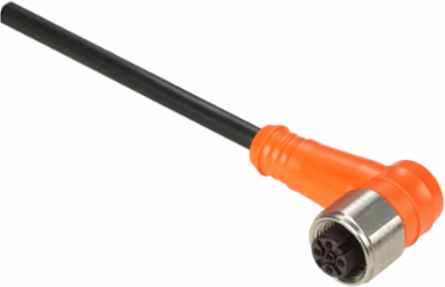

Telemecanique Sensors XZCPA1164L2 Pre wired connectors XZ, elbowed female, M12, 5 pins, cable PVC 2 m
- MPN: XZCPA1164L2
- PPN: TES-XZCPA1164L2
- UNSPSC: 39121528
CAD
$44.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pre wired connectors XZ, elbowed female, M12, 5 pins, cable PVC 2 m
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- Application
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- stainless steel 316L
- Cable Outer Diameter
- 5.7 mm
- Wire Insulation Material
- PVC
- Cable Connector Fixing
- screw-on
- Line Rated Current
- 4 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionelbowed female connector M12, 5 pins (included earth pin)
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage60 V AC || 75 V DC
Cable Length2 m
Cable Composition5 x 0.34 mm²
Net Weight0.11 kg
Environment
- Ambient Air Temperature For Operation
- -25-85 °C static
- Ip Degree Of Protection
- IP69K
Ambient Air Temperature For Storage-35-100 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
