ABB CP9-1006 CP9-1006 Pushbutton
- MPN: CP9-1006
- PPN: ABB-CP9-1006
- UNSPSC: 39122216
CAD
$36.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

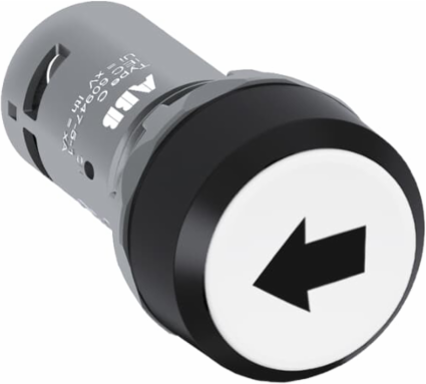

The CP9-1006 Pushbutton is: Compact - Pushbutton - Momentary - Flush - White cap with symbol arrow to left - Non-illuminated - Black Plastic - 2NO - 300 V
Specifications
Dimensions
- Product Net Width
- 0.03 m
- Product Net Depth / Length
- 0.055 m
Product Net Height0.03 m
Product Net Weight0.018 kg
Technical
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -40 ... +85 °C
- Actuator Type
- Flush
- Illumination
- Non-illuminated
- Device Marking
- Arrow left
- Number of Auxiliary Contacts NO
- 2
- Enclosure Type NEMA
- Type1Type12Type13Type3RType4Type4X
- Rated Insulation Voltage (Ui)
- 300 V
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Operational Current DC-13 (Ie)
- (24 V) 0.3 A(125 V) 0.2 A
- Power Loss
- Maximum 5 W
- Connecting Capacity
- Flexible with Ferrule 1 x 0.5...1.5 mm²Flexible with Ferrule 2 x 0.5...1.5 mm²Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²Flexible 1 x 0.5 ...1.5 mm²Flexible 2 x 0.5 ...1.5 mm²Solid 1 x 0.5...1.5 mm²Solid 2 x 0.5...1.5 mm²
- Terminal Type
- Screw Terminals
- Wire Stripping Length
- 6 mm
ColorWhite
Bezel MaterialBlack Plastic
FunctionMomentary
Number of Auxiliary Contacts NC0
Degree of ProtectionFront IP66Front IP67Front IP69KTerminals IP20
Pollution Degree3
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Operational VoltageMaximum 300 V
Rated Operational Current AC-15 (Ie)(240 V) 1 A
Mechanical Durability0.5 million
Connection TypeScrew Clamp
Tightening Torque0.8 N·m
Classifications
- Object Classification Code
- S
- IDEA Granular Category Code (IGCC)
- 5212 >> Push button for distribution board
eClassV11.0 : 27371228
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information
- 2CMT2015-005451
- WEEE B2C / B2B
- Business To Business
RoHS Date0626 5
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Technical UL/CSA
- Connecting Capacity UL/CSA
- 1x 22...14 AWG2x 22...14 AWG
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number8536501999
