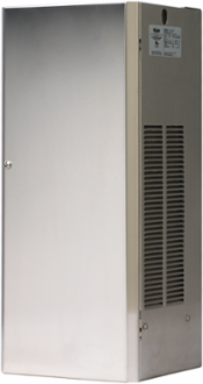

nVent Hoffman CR230226G014 ProAir Harsh Environment Indoor/Outdoor 4X CR23, 1600BTU 230V, Brushed, SS304
- MPN: CR230226G014
- UPC: 783510321697
- PPN: HOF-CR230226G014
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Indoor/Outdoor 4X CR23, CR230226G014 item is rated 1600BTU 230V with material of SS304 finish Brushed.
Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 254
- Nominal Voltage
- 230
- Number of Phases
- 1
- Nominal Capacity Watts
- 508
- Protection Rating
- NEMA Type 4X
- Material
- Stainless Steel 304
- Thickness (T)
- 1.21
- Weight
- 51.7
- Model
- Surface Mounted
- BTU Rating
- 1,600
- Power
- 469 W
- Housing Material
- Stainless Steel
Height (H)584
Depth (D)222
Remote Access ControlNo
Nominal Capacity Btu/h1,733
Max Current1.7
Product FamilyProAir
FinishBrushed #3
NEMA Rating4X Watertight, corrosion-resistant
Sub BrandProAir
Voltage Rating230 VAC
Amperage Rating2.5 A
Frequency Rating50/60 Hz
Operating Temperature131 deg F
