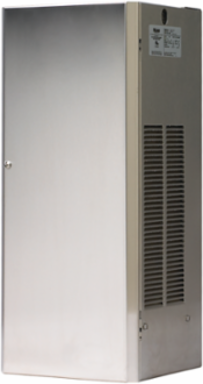

nVent Hoffman CR230226G037 ProAir Harsh Environment Indoor/Outdoor 4X CR23, 1600BTU 460V 1PH, Brushed, SS304
- MPN: CR230226G037
- UPC: 783510223014
- PPN: HOF-CR230226G037
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Indoor/Outdoor 4X CR23, CR230226G037 item is rated 1600BTU 460V 1PH with material of SS304 finish Brushed.
Features
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 254 |
| Nominal Voltage | 460 |
| Number of Phases | 1 |
| Nominal Capacity Watts | 508 |
| Max Current | 0.9 |
| Product Family | ProAir |
| Finish | Brushed #3 |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Sub Brand | ProAir |
| Color | Gray |
| Height (H) | 584 |
|---|---|
| Depth (D) | 222 |
| Remote Access Control | No |
| Nominal Capacity Btu/h | 1,733 |
| Operating Temperature | -40 |
| Protection Rating | NEMA Type 4X |
| Material | Stainless Steel 304 |
| Thickness (T) | 1.21 |
| Weight | 60.3 |
| Voltage Rating | 400 - 460 VAC |
