Schneider Electric NSYCAG130X110LM Metal outlet grille cut-out 104x80mm ext dim 120x120mm IP23
- MPN: NSYCAG130X110LM
- PPN: SCH-NSYCAG130X110LM
CAD
$25.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

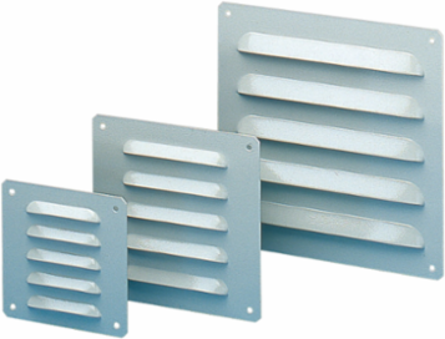

ClimaSys CA metal outlet grille. 103 x 80 mm cut-out. External is 120 x 120 mm. Thermal management accessory. Metal louvre plate. Mounting on sides of enclosure, fixing mode by screws. Steel made, epoxy-polyester powder finish. Grey RAL 7035. IP23 Protection.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, United States
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6421075845710166, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.09554767203091036, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- metal louvre plate
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; High voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 8
- Width Nominal
- external: 160 mm
- Accessory / Separate Part Destination
- ClimaSys ventilation system
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6 kg CO2 eq., 0.5938139845139263
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.8272598138010023
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Composition1 metal louvre
Fixing Modeby screws
Mounting Locationsides of enclosure
Product NameClimaSys CA
RangeClimaSys
Software Versionv6.2.5-6
Sustainable PackagingNo
Pep CodeENVPEP2012014EN
Pep Verification Date2024-06-09
Psr VersionPSR-0008-ed3-EN-2023 10 19
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y17
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalexternal: 160 mm
Accessory / Separate Part Categorythermal management accessory
Cut-out Dimensions110 x 130 mm
Package Weight(Lbs)324.000 g
Warranty (In Months)18
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 3.1587290549168556
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2012014EN
Ip Degree Of ProtectionIP23
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2012014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- metal louvre plate
ETIM
- ETIM 8
- EC000331
ETIM 9EC000331
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
