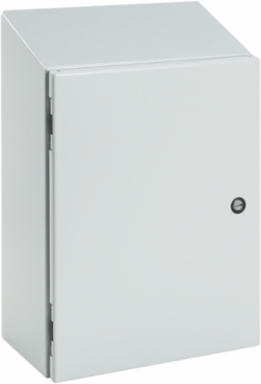

nVent Hoffman CSD20208ST Concept Sloped-Top Enclosure Type 4, 20 Inch x 20 Inch x 8 Inch, NEMA 4, Mild Steel
- MPN: CSD20208ST
- UPC: 783510144579
- PPN: HOF-CSD20208ST
- UNSPSC: 39121324
CAD
$845.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept Sloped-top enclosures are ideal for machine control applications. This Concept Sloped-Top Enclosure Type 4, CSD20208ST item measures 20.00x20.00x8.00 inches with a material of Steel colored Lt Gray.
Features
- Bonding provision on door and body
- Panel-mounting studs fit optional Concept panels and other accessories
- Corner-formed door
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
- External formed body flange channels away liquids
- Door opens 210 degrees
- Seamless foam-in-place gasket
- Quarter-turn latches
- Mounting holes in back of body for optional external mounting brackets
- Larger sizes support 19-in. rack mounting
- Door alignment device on doors wider than 30-in.
- Minimum-width body flange provides maximum door opening
- 20-degree sloped top
Documentation & Downloads
Specifications
Additional
- Size
- 20.00 x 20.00 x 8.00 in
- Finish
- Powder coated RAL 7035 light gray polyester
- Latch Type
- Quarter-turn, 1 latch
- Door Thickness
- 1.52 in
- IP Rating
- IP66
- Protection Rating
- NEMA Type 12
- Type
- 4
- Door Opening Angle
- 210 degrees
- Gasket
- Seamless foam-in-place
MaterialSteel, 16 gauge mild steel
ColorLight Gray (RAL 7035)
Body Thickness1.52 in
Mounting542 x 470 mm holes for optional external brackets
NEMA RatingNEMA 4 Watertight
Weight31 lb
Panel Size462 mm
Slope Angle20 degrees
