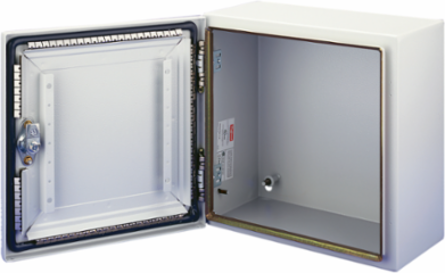

nVent Hoffman CSD36308LGEMC Concept EMC Enclosure, 36 Inch x 30 Inch x 8 Inch, Mild Steel, NEMA 4
- MPN: CSD36308LGEMC
- UPC: 783510257590
- PPN: HOF-CSD36308LGEMC
- UNSPSC: 39121324
CAD
$3214.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept EMC enclosures protect components or contains EMI/RFI signals depending on your application. This Concept EMC Enclosure Type 4, CSD36308LGEMC item measures 36.00x30.00x8.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Minimum width body flange provides maximum door opening
- External formed body flange channels away liquids
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Door opens 210 degrees
- Corner-formed door
- Hinge mounting brackets for wire management or optional accessories
- Stainless steel spring finger EMI/RFI gasket
- Quarter-turn latches
- Grounding stud on body
- Door bars provided for wire management and bonding
- Hardware kit includes panel mounting nuts screws, grounding hardware and sealing washers
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 762
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.9
- Mounting (G x H)
- 876 x 724
- IP Rating
- IP66
- Sub Brand
- Concept
- Size
- 36.00x30.00x8.00 in
- NEMA Rating
- 4 Watertight
Height (H)914
Depth (D)203
Product FamilyConcept
Color CodeRAL 7035
Door Thickness1.9
Latch Quantity2
Weight81
MaterialSteel
ColorLtGray
