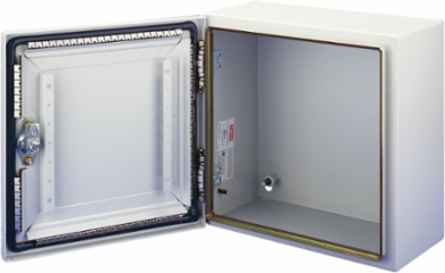

nVent Hoffman CSD24248LGEMC Concept EMC Enclosure 24 Inch x 24 Inch x 8 Inch, NEMA 4, Light Gray Steel
- MPN: CSD24248LGEMC
- UPC: 783510257392
- PPN: HOF-CSD24248LGEMC
- UNSPSC: 39121324
CAD
$2335.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept EMC enclosures protect components or contains EMI/RFI signals depending on your application. This Concept EMC Enclosure Type 4, CSD24248LGEMC item measures 24.00x24.00x8.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Minimum width body flange provides maximum door opening
- External formed body flange channels away liquids
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Door opens 210 degrees
- Corner-formed door
- Hinge mounting brackets for wire management or optional accessories
- Stainless steel spring finger EMI/RFI gasket
- Quarter-turn latches
- Grounding stud on body
- Door bars provided for wire management and bonding
- Hardware kit includes panel mounting nuts screws, grounding hardware and sealing washers
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.52
- Mounting (G x H)
- 572 x 572
- IP Rating
- IP66
- Sub Brand
- Concept
- Size
- 24.00x24.00x8.00 in
- NEMA Rating
- 4 Watertight
Height (H)610
Depth (D)203
Product FamilyConcept
Color CodeRAL 7035
Door Thickness1.9
Latch Quantity2
Weight45
MaterialSteel
ColorLtGray
