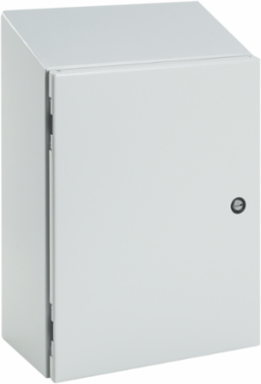

nVent Hoffman CSD242412ST Concept Sloped-Top Enclosure 24x24x12 Inch, IP66, NEMA 4, Mild Steel
- MPN: CSD242412ST
- UPC: 783510144715
- PPN: HOF-CSD242412ST
- UNSPSC: 39121324
CAD
$1090.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept Sloped-top enclosures are ideal for machine control applications. This Concept Sloped-Top Enclosure Type 4, CSD242412ST item measures 24.00x24.00x12.00 inches with a material of Steel colored Lt Gray.
Features
- Bonding provision on door and body
- Panel-mounting studs fit optional Concept panels and other accessories
- Corner-formed door
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
- External formed body flange channels away liquids
- Door opens 210 degrees
- Seamless foam-in-place gasket
- Quarter-turn latches
- Mounting holes in back of body for optional external mounting brackets
- Larger sizes support 19-in. rack mounting
- Door alignment device on doors wider than 30-in.
- Minimum-width body flange provides maximum door opening
- 20-degree sloped top
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.52
- Panel Size (D)
- 564
- Mounting (G x H)
- 680 x 572
- Latch Type
- Quarter-Turn
- Weight
- 50
- Material
- Steel
- Color
- LtGray
Height (H)610
Depth (D)305
Product FamilyConcept
Color CodeRAL 7035
Door Thickness1.9
Panel Size (E)564
Latch Quantity2
IP RatingIP66
Sub BrandConcept
Size24.00x24.00x12.00 in
NEMA Rating4 Watertight
