Schmersal 101204613 CSS 30S Safety Sensor, 15 mm Switching Distance, IP65/IP67/IP69 Protection
- MPN: 101204613
- PPN: SCM-101204613
CAD
$707.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CSS 30S Safety Sensor, 15 mm Switching Distance, IP65/IP67/IP69 Protection
Features
- serial diagnostic output
- Stainless steel enclosure
- Max. 31 sensors can be wired in series.
- Connector M12, 8-pole
- Ø M30
- High repeat accuracy of the switching points
- Max. length of the sensor chain 200 m
- 2 short-circuit proof PNP safety outputs
- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
- Safety sensor can also be installed behind V4A covers.
Documentation & Downloads
Specifications
Electrical data - Serial diagnostic SD
| Designation, Serial diagnostic SD | OUT |
|---|---|
| Design of control elements | short-circuit proof, p-type |
| Operation current | 150 mA |
|---|---|
| Wiring capacitance | 50 nF |
Electrical data
| Operating voltage | 24 VDC -15 % / +10 % |
|---|---|
| Rated operating voltage | 24 VDC |
| Required rated short-circuit current | 100 A |
| No-load supply current I | 100 mA |
|---|---|
| Operating current | 600 mA |
| Switching frequency, approx. | 3 Hz |
Note
| Note (General) | Evaluation requirements: The switch-off pauses of 250 µs – 1500 µs must be tolerated by the evaluation. | The switch-off time of the safety sensor of 250 μs is additionally extended according the cable length and the capacity of the cable used. Typically a switch off time of 500 μs with 100 m of connection cable is reached. |
|---|

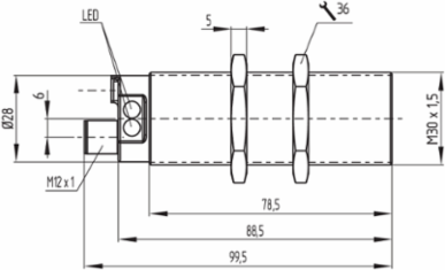

Mechanical data - Dimensions
| ISO thread of the sensor | M30 |
|---|
| Length of sensor | 99.5 mm |
|---|
Pin assignment
| PIN 1 | 1A1 Ue: (1) |
|---|---|
| PIN 3 | A2 GND |
| PIN 5 | SD serial diagnostic output |
| PIN 7 | Y2 Safety output 2 |
| PIN 2 | X1 Safety input 1 |
|---|---|
| PIN 4 | Y1 Safety output 1 |
| PIN 6 | X2 Safety input 2 |
| PIN 8 | IN serial diagnostic input |
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VAC/DC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
| Scope of delivery of mounting material | 2x Mounting material M30 x 1.5 nuts |
|---|
General data - Features
| Serial diagnostics | Yes |
|---|---|
| Short circuit detection | Yes |
| Safety functions | Yes |
| Integral system diagnostics, status | Yes |
| Number of semi-conductor outputs with signaling function | 1 |
| Number of series-wiring of sensors | 31 |
| Diagnostic output | Yes |
|---|---|
| Cross-circuit detection | Yes |
| Cascadable | Yes |
| Number of LEDs | 2 |
| Number of fail-safe digital outputs | 2 |
General data
| Standards | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Housing construction form | Cylinder, thread |
| Sensor topology | Sensor for series wiring |
| Gross weight | 248 g |
| Duration of risk, maximum | 60 ms |
| Working principle | inductive |
|---|---|
| Installation conditions (mechanical) | not flush |
| Enclosure material | Stainless steel |
| Reaction time, maximum | 60 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Category | 4 |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Performance Level, up to | e |
|---|---|
| PFH value | 3.60 x 10⁻⁹ /h |
| Mission time | 20 Year(s) |
Electrical data - Safety digital outputs
| Rated operating current (safety outputs) | 250 mA |
|---|---|
| Design of control elements | p-type |
| Leakage current I | 0.5 mA |
| Current, Utilisation category DC-12 | 0.25 A |
| Current, Utilisation category DC-13 | 0.25 A |
| Output current, (fail-safe output), maximum | 0.25 A |
|---|---|
| Voltage drop U | 0.5 V |
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
Ambient conditions
| Degree of protection | IP65 | IP67 | IP69 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Protection class | II |
| Ambient temperature | -25 ... +65 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Note (length of the sensor chain) | Cable length and cross-section change the voltage drop dependiing on the output current |
|---|
| Note (series-wiring) | Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD |
|---|
Electrical data - Diagnostic outputs
| Design of control elements | p-type |
|---|
| Voltage drop U | 5 V |
|---|

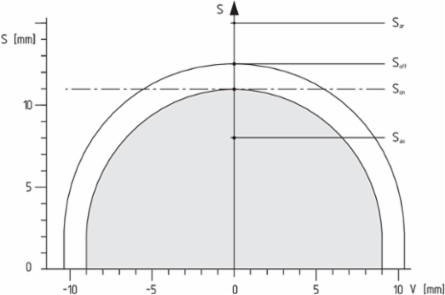

Mechanical data - Switching distances according EN IEC 60947-5-3
| Switch distance, typical | 11 mm |
|---|---|
| Assured switching distance "OFF" S | 15 mm |
| Assured switching distance "ON" S | 8 mm |
|---|
Mechanical data
| Actuating panels | Actuation from top |
|---|---|
| Hysteresis (Switching distance), maximum | 2 mm |
| Active area | front side |
|---|---|
| Repeat accuracy R | 1 mm |
Accessory
| Recommendation (actuator) | CST 30S-1 |
|---|
| Recommended safety switchgear | PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | cULus | UKCA |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| Interfering radiation | IEC 61000-6-4 |
|---|
| EMC rating | IEC 61000-6-2 |
|---|
