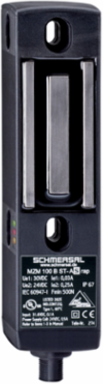

MZM 100 ST-AS Safety Switch, 40 mm x 179 mm, IP67, 500 N Holding Force
Features
- Power to lock
- Guard locking monitored
- Solenoid interlock
- Thermoplastic enclosure
- Integrated AS-Interface
- 40 mm x 179 mm x 40 mm
- Solenoid interlocks with innovating and unique operating principle
- Electronic contact-free, coded system
- 3 LEDs to show operating conditions
- Automatic latching

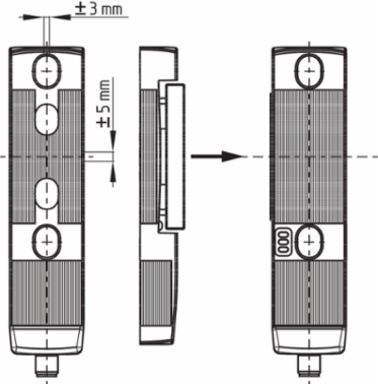

- Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
- Intelligent diagnosis
Documentation & Downloads
Specifications
Electrical data
- Time to readiness, maximum
- 4,000 ms
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-7.B.F.E
- AS-i, ID-Code
- 0xB
- AS-i, ID-Code2
- 0xE
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Outputs, DO 1
- For the variable setting of the latching force
- AS-i Outputs, DO 3
- For the variable setting of the latching force
- AS-i Parameter bits, P1
- Solenoid interlock locked
- AS-i Parameter bits, P3
- Device error (fault detected)
- AS-i Input module address
- 0
AS-i VersionV 2.1
AS-i, IO-Code0x7
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0Solenoid control
AS-i Outputs, DO 2For the variable setting of the latching force
AS-i Parameter bits, P0Actuator in
AS-i Parameter bits, P2Auxiliary voltage in
Note (AS-i Parameter bits)Set the parameter outputs to "1111" (0xF) | FID: periphery error
Note (AS-i Input module address)Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Note
- Note (General)
- Interlocks with the power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened. | As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

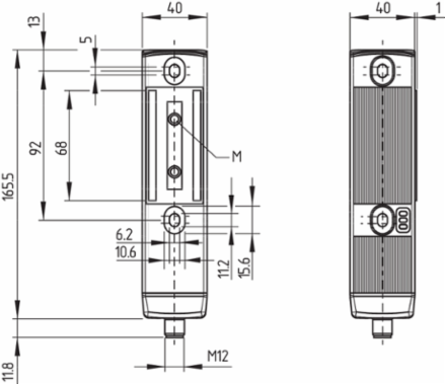

Mechanical data - Dimensions
- Length of sensor
- 40 mm
- Height of sensor
- 179 mm
Width of sensor40 mm
Pin assignment
- PIN 1
- AS-i +
- PIN 3
- AS-Interface -
PIN 2Aux - (P)
PIN 4Aux + (P)
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Electrical data - Magnet control
- Magnet switch-on time
- 100 %
General data - Features
- Power to lock
- Yes
- Latching
- Yes
- Integral system diagnostics, status
- Yes
Solenoid interlock monitoredYes
Safety functionsYes
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Reaction time, maximum
- 150 ms
CodingUniversal coding
Working principleinductive
Gross weight602 g
Duration of risk, maximum150 ms
Safety classification
- Standards
- EN IEC 60947-5-3 | EN IEC 61508
- Category
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance Level, up toe
PFH value5.00 x 10⁻⁹ /h
Mission time20 Year(s)
Electrical data - AS Interface
- Rated operating voltage
- 26.5 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum100 mA
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 30 %
- Note (Relative humidity)
- non-condensing | non-icing
- Restistance to shock
- 30 g / 11 ms
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+85 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm
Protection classIII
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Holding force, typically
- 750 N
- Latching force, minimum
- 30 N
Note (Mechanical life)Actuating speed ≤ 0.5 m/s | Operations for door weights ≤ 5 kg
Holding force, guaranteed500 N
Latching force, maximum100 N
Accessory
- Recommendation (actuator)
- MZM 100-B1.1
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW | UKCA
Electrical data - Auxiliary voltage
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Rated operating voltage
- 24 VDC
Current consumption600 mA
Status indication
- Note (LED switching conditions display)
- (1) LED green-red (AS-i Duo LED): Supply voltage / Communication error / Slave address = 0 | (2) LED yellow: Device condition | (3) LED red: Internal device error
