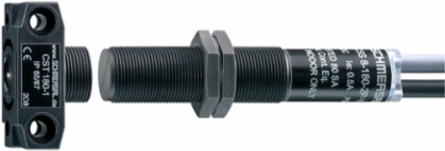

Schmersal 101169552 CSS 180 Electronic Safety Sensor, 24 VDC, 5-Pole Connection, 92 mm Length
- MPN: 101169552
- PPN: SCM-101169552
CAD
$536.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CSS 180 Electronic Safety Sensor, 24 VDC, 5-Pole Connection, 92 mm Length
Features
- Pre-wired cable 5-pole
- Comfortable diagnostics through sensor LED and electronic signalling output
- Thermoplastic enclosure
- Electronic contact-free, coded system
- Misaligned actuation possible
- High repeat accuracy of the switching points
- Max. length of the sensor chain 200 m
- Early warning when operating near the limit of the sensor's hysteris range

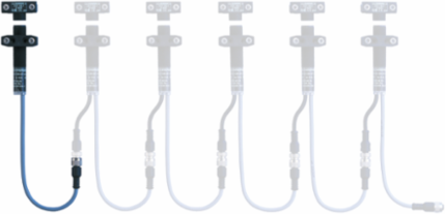

- Self-monitoring series-wiring of 16 sensors
- 2 short-circuit proof PNP safety outputs
Documentation & Downloads
Specifications
Electrical data
| Operating voltage | 24 VDC -15 % / +10 % |
|---|---|
| Rated operating voltage | 24 VDC |
| Switching frequency, approx. | 3 Hz |
| No-load supply current I | 50 mA |
|---|---|
| Operating current | 1,000 mA |
Note
| Note (General) | Evaluation requirements: dual-channel safety input, suitable for p-type sensors with NO function. The safety-monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 0.25 ms. Short-circuit recognition by the evaluation is not necessary. |
|---|
Mechanical data - Dimensions

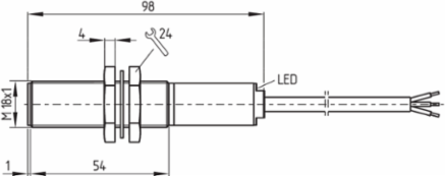

| ISO thread of the sensor | M18 |
|---|---|
| Length of sensor | 92 mm |
| width across flats | 24 BK |
|---|
Pin assignment
| PIN 1 | A1 Ue Brown |
|---|---|
| PIN 3 | A2 GND Blue |
| PIN 5 | signalling output: Grey |
| PIN 2 | Y2 safety output 2: White |
|---|---|
| PIN 4 | Y1 Safety output 1 Black |
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
| Scope of delivery of mounting material | 2x nuts M18 x 1 |
|---|
General data - Features
| Short circuit detection | Yes |
|---|---|
| Safety functions | Yes |
| Number of semi-conductor outputs with signaling function | 1 |
| Number of series-wiring of sensors | 16 |
| Cross-circuit detection | Yes |
|---|---|
| Integral system diagnostics, status | Yes |
| Number of fail-safe digital outputs | 2 |
General data
| Standards | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Housing construction form | Cylinder, thread |
| Sensor topology | Individual sensor or end sensor in a series |
| Active area | Glass-fibre, reinforced thermoplastic |
| Gross weight | 150 g |
| Duration of risk, maximum | 30 ms |
| Working principle | inductive |
|---|---|
| Installation conditions (mechanical) | not flush |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 30 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Category | 4 |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Performance Level, up to | e |
|---|---|
| PFH value | 2.50 x 10⁻⁹ /h |
| Mission time | 20 Year(s) |
Electrical data - Safety digital outputs
| Rated operating current (safety outputs) | 500 mA |
|---|---|
| Design of control elements | p-type |
| Leakage current I | 0.5 mA |
| Current, Utilisation category DC-12 | 0.5 A |
| Current, Utilisation category DC-13 | 0.5 A |
| Output current, (fail-safe output), maximum | 0.5 A |
|---|---|
| Voltage drop U | 0.5 V |
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
Ambient conditions
| Degree of protection | IP65 | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Protection class | II |
| Ambient temperature | -25 ... +60 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Cable |
|---|---|
| Terminal connector, Output | 5-pole |
| Wire cross-section | 22 AWG |
| Length of cable | 2 m |
|---|---|
| Wire cross-section | 0.35 mm |
Electrical data - Diagnostic outputs
| Rated operating voltage | 24 VDC |
|---|---|
| Voltage drop U | 4 V |
| Current, Utilisation category DC-12 | 0.05 A |
| Current, Utilisation category DC-13 | 0.05 A |
| Design of control elements | p-type |
|---|---|
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |

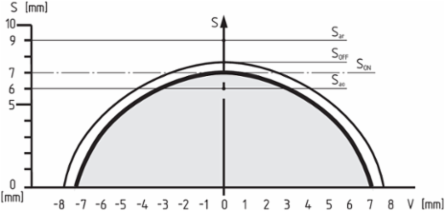

Mechanical data - Switching distances according EN IEC 60947-5-3
| Switch distance, typical | 8 mm |
|---|---|
| Assured switching distance "OFF" S | 10 mm |
| Assured switching distance "ON" S | 7 mm |
|---|
Mechanical data
| Hysteresis (Switching distance), maximum | 0.7 mm |
|---|---|
| Tightening torque of nuts, maximum | 3 Nm |
| Repeat accuracy R | 0.2 mm |
|---|
Accessory
| Recommendation (actuator) | CST 180-1 | CST 180-2 |
|---|
| Recommended safety switchgear | PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | cULus | UKCA |
|---|
Status indication
| Note (LED switching conditions display) | Multi-coloured LED: Green, Red, Yellow |
|---|
