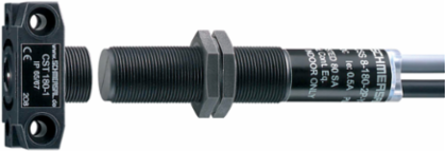

Schmersal 101167896 CSS 8-180-2P-E-L Electronic Safety Sensor, 92 mm Length, Inductive Operation
- MPN: 101167896
- PPN: SCM-101167896
CAD
$504.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CSS 8-180-2P-E-L Electronic Safety Sensor, 92 mm Length, Inductive Operation
Features
- Pre-wired cable 4-pole
- Thermoplastic enclosure
- Electronic contact-free, coded system
- Misaligned actuation possible
- High repeat accuracy of the switching points
- Max. length of the sensor chain 200 m
- Early warning when operating near the limit of the sensor's hysteris range

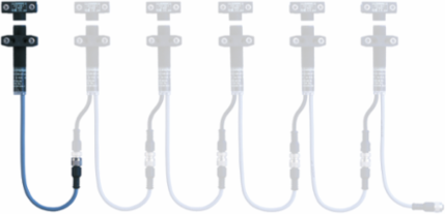

- Self-monitoring series-wiring of 16 sensors
- 2 short-circuit proof PNP safety outputs
Documentation & Downloads
Specifications
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 %
- Rated operating voltage
- 24 VDC
- Switching frequency, approx.
- 3 Hz
No-load supply current I50 mA
Operating current1,000 mA
Note
- Note (General)
- Evaluation requirements: dual-channel safety input, suitable for p-type sensors with NO function. The safety-monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 0.25 ms. Short-circuit recognition by the evaluation is not necessary.

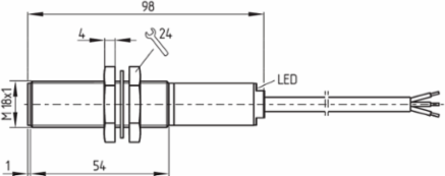

Mechanical data - Dimensions
- ISO thread of the sensor
- M18
- Length of sensor
- 92 mm
width across flats24 BK
Pin assignment
- PIN 1
- A1 Ue Brown
- PIN 3
- A2 GND Blue
PIN 2Y2 safety output 2: White
PIN 4Y1 Safety output 1 Black
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Scope of delivery of mounting material2x nuts M18 x 1
General data - Features
- Short circuit detection
- Yes
- Safety functions
- Yes
- Number of fail-safe digital outputs
- 2
Cross-circuit detectionYes
Integral system diagnostics, statusYes
Number of series-wiring of sensors16
General data
- Standards
- EN IEC 60947-5-3 | EN IEC 61508
- Housing construction form
- Cylinder, thread
- Sensor topology
- Individual sensor or end sensor in a series
- Active area
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 137 g
- Duration of risk, maximum
- 30 ms
Working principleinductive
Installation conditions (mechanical)not flush
Enclosure materialGlass-fibre, reinforced thermoplastic
Material of the nutsGlass-fibre, reinforced thermoplastic
Reaction time, maximum30 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Category
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance Level, up toe
PFH value2.50 x 10⁻⁹ /h
Mission time20 Year(s)
Electrical data - Safety digital outputs
- Rated operating current (safety outputs)
- 500 mA
- Design of control elements
- p-type
- Leakage current I
- 0.5 mA
- Current, Utilisation category DC-12
- 0.5 A
- Current, Utilisation category DC-13
- 0.5 A
Output current, (fail-safe output), maximum0.5 A
Voltage drop U0.5 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Ambient conditions
- Degree of protection
- IP65 | IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Protection class
- II
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Cable
- Terminal connector, Output
- 4-pole
- Wire cross-section
- 20 AWG
Length of cable2 m
Wire cross-section0.5 mm

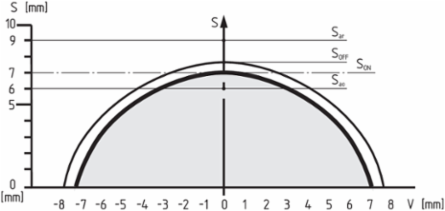

Mechanical data - Switching distances according EN IEC 60947-5-3
- Switch distance, typical
- 8 mm
- Assured switching distance "OFF" S
- 10 mm
Assured switching distance "ON" S7 mm
Mechanical data
- Hysteresis (Switching distance), maximum
- 0.7 mm
- Tightening torque of nuts, maximum
- 3 Nm
Repeat accuracy R0.2 mm
Accessory
- Recommendation (actuator)
- CST 180-1 | CST 180-2
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- cULus | UKCA
Status indication
- Note (LED switching conditions display)
- Multi-coloured LED: Green, Red, Yellow
