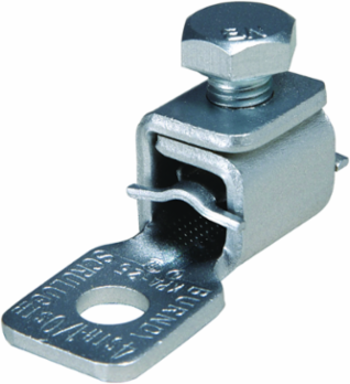

Burndy KPA4CG27 Copper Terminal, 1 Hole, For 14-4 AWG Cable, Bolted, Tin Plated

MPN: KPA4CG27
UPC: 781810172896
PPN: BUR-387062

$15.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Terminal, For Cu Cable, 1 Hole, #14 - #4 AWG

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	1/2 in
Dimension - D inch	0.59 in
Dimension - Height inch	0.94 in
Dimension - Hole Size mm	7 mm
Dimension - Length Overall inch	1.19 in
Dimension - Pad Width inch	0.50 in

Dimension - B Length inch	0.50 in
Dimension - Height fraction	47/50 in
Dimension - Hole Size inch	0.27 in
Dimension - L Length Overall mm	30 mm
Dimension - N inch	0.3 in

Certifications and Compliance

Certification - CSA Approved	No
Certification - UL Recognized	No
Standards - RoHS Compliance Status	EX

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper Solid Size	14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
Conductor - Copper Str Navy Size	23 (7) Navy;30 (19) Navy;40 (19) Navy
Conductor - Copper Str Size	14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG

Conductor - Copper Solid Size Range	14 AWG-4 AWG
Conductor - Copper Str Navy Size Range	23 (7) Navy-40 (19) Navy
Conductor - Copper Str Size Range	14 AWG-4 AWG

General

Connector Type	Terminal
Material	Copper
Physical Attribute - Number of Holes	1
Physical Attribute - Screw Type	Slot
Plating Type	Tin - Electro Plated
Trade Name	SCRULUG™
UPC	781810172896

Item Type	4D
Material - Hardware	Steel
Physical Attribute - Number of Screws	1
Plated	Y
Temperature Rating	194
Type	Bolted Lugs & Terminals
UPC 12 Digit	7818101728966
