Square D PCSPCTFCL15001R AccuSine+ Current Transformer 1500/1, 69.8x168.2mm Split Core
- MPN: PCSPCTFCL15001R
- PPN: SCH-PCSPCTFCL15001R
- UNSPSC: 39121032
CAD
$1582.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

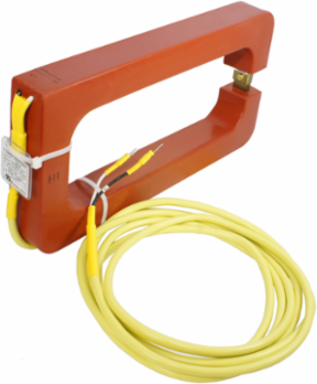

This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 1500A and a secondary rating of 1A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 1.9 kg
- Range Compatibility
- AccuSine AccuSine PCS+ active harmonic filter || AccuSine AccuSine PFV+ electronic VAR controller
- Current Transformer Type
- split core
- Shape
- rectangular
Secondary Current1 A
Accessory / Separate Part Categorymeasurement accessory
Product Or Component Typecurrent transformer
RangeAccuSine
Complementary
- Network Frequency
- 50...400 Hz
- Current Transformer Ratio
- 1500/1
- Electrical Connection
- flying lead 3.65 m720 V
- Height
- outside: 238 mm || inner: 168.2 mm
- Line Rated Current
- 1500 A
- [Uimp] Rated Impulse Withstand Voltage
- 10 kV (50 µs)
- Depth
- outside : 38.1 mm
[Ue] Rated Operational Voltage< 720 V AC 50...400 Hz
Measurement Accuracy1 %
Widthoutside: 139.7 mm || inner: 69.8 mm
Input Impedance15 Ohm
Continuous Thermal Current Rating Factor1.25 30 °C || 1 55 °C
Net Weight1.9 kg
Accuracy Classclass 1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Product Certifications
- cURus || CE
- Standards
- IEC 60044-1
Ambient Air Temperature For Operation-45-55 °C
