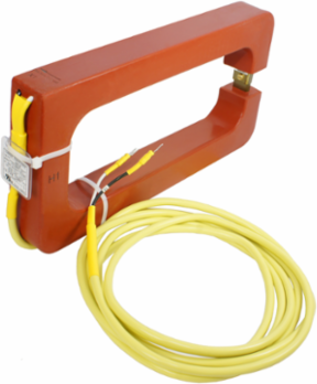

Square D PCSPCTFCL25005R AccuSine+ Split Core Current Transformer 2500/5A 69.8x168.2mm
- MPN: PCSPCTFCL25005R
- PPN: SCH-PCSPCTFCL25005R
- UNSPSC: 39121032
CAD
$1646.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 2500A and a secondary rating of 5A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Documentation & Downloads
Specifications
Key Specifications
| Weight | 1.9 kg |
|---|---|
| Range Compatibility | AccuSine AccuSine PCS+ active harmonic filter || AccuSine AccuSine PFV+ electronic VAR controller |
| Current Transformer Type | split core |
| Shape | rectangular |
| Secondary Current | 5 A |
|---|---|
| Accessory / Separate Part Category | measurement accessory |
| Product Or Component Type | current transformer |
| Range | AccuSine |
Complementary
| Network Frequency | 50...400 Hz |
|---|---|
| Current Transformer Ratio | 2500/5 |
| Electrical Connection | flying lead 3.65 m720 V |
| Height | outside: 238 mm || inner: 168.2 mm |
| Line Rated Current | 2500 A |
| [Uimp] Rated Impulse Withstand Voltage | 10 kV (50 µs) |
| Depth | outside : 38.1 mm |
| [Ue] Rated Operational Voltage | < 720 V AC 50...400 Hz |
|---|---|
| Measurement Accuracy | 1 % |
| Width | outside: 139.7 mm || inner: 69.8 mm |
| Input Impedance | 1.4 Ohm |
| Continuous Thermal Current Rating Factor | 1.25 30 °C || 1 55 °C |
| Net Weight | 1.9 kg |
| Accuracy Class | class 1 |
Environment
| Product Certifications | CE || cURus |
|---|---|
| Ambient Air Temperature For Storage | -45-200 °C |
| Ambient Air Temperature For Operation | -45-55 °C |
|---|---|
| Standards | IEC 60044-1 |
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
