Square D PCSPCTFCL25001R AccuSine+ current transformer - 2500/1 - Rectangular Split Core - 69.8x168.2mm
- MPN: PCSPCTFCL25001R
- PPN: SCH-PCSPCTFCL25001R
- UNSPSC: 39121032
CAD
$1478.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

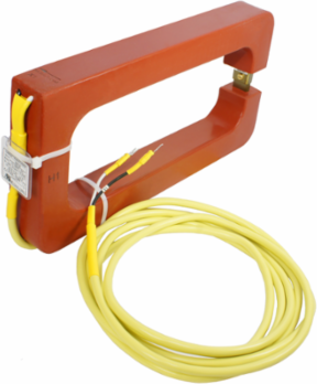

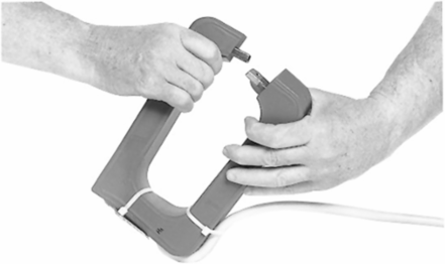

This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 2500A and a secondary rating of 1A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 6.62 in
- Depth
- 0 in
Width2.75 in
Complementary Attributes
- UE Rated Operational Voltage
- < 720 V AC 50...400 Hz, < 720 V AC 50...400 Hz, < 720 V AC 50...400 Hz
UIMP Rated Impulse Withstand Voltage10 kV (50 µs)
Important Information Attributes
- Continuous Thermal Current Rating Factor
- 1.25 30 °C, 1 55 °C
- Local Data Status
- Publishable
- Device Type
- Transformer - current transformer
- Traceability
- No
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- No
- Return Indicator
- N
- Current Transformer Ratio
- 2500/1
- Electrical Connection
- flying lead 3.65 m720 V
- Package Weight Lbs
- 2.0 kg
- Product Or Component Type
- current transformer
- Returnability
- No
- Sustainable Packaging
- No
- Product Manager
- SREEMANT ROY
Range CompatibilityAccuSine AccuSine PCS+ active harmonic filter, AccuSine AccuSine PFV+ electronic VAR controller
Local Publishable Date2025-10-30
ServiceabilityNo
Scope PerimeterAt least in Europe
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status5 - INITIALIZED WITH DataSCAN OK (Migration)
Current Transformer Typesplit core
Measurement Accuracy1 %
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeAccuSine
Secondary Current1 A
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption, Compliant with Exemptions
- Take Back
- No
- China ROHS Regulation
- X
- Packaging Made With Recycled Cardboard
- No
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- current transformer
