Square D PCSPCTFCL200016 AccuSine+ Current Transformer 2000A/1A Round Split Core 152.4mm
Square D PCSPCTFCL200016 AccuSine+ Current Transformer 2000A/1A Round Split Core 152.4mm
- MPN: PCSPCTFCL200016
- PPN: SCH-PCSPCTFCL200016
- UNSPSC: 39121032
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1530.03/ EA
Description

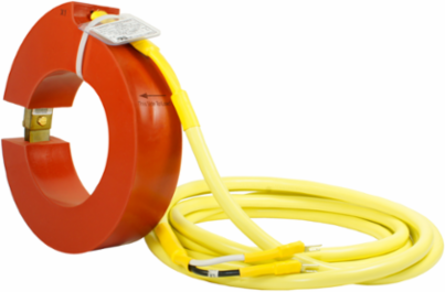

This round split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 2000A and a secondary rating of 1A. The inner diameter of this coil is 152.4mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Specifications
Complementary Attributes
- UE Rated Operational Voltage
- < 720 V AC 50...400 Hz, < 720 V AC 50...400 Hz, < 720 V AC 50...400 Hz
UIMP Rated Impulse Withstand Voltage10 kV (50 µs)
Important Information Attributes
- Continuous Thermal Current Rating Factor
- 1.25 30 °C, 1 55 °C
- Range Compatibility
- AccuSine AccuSine PCS+ active harmonic filter, AccuSine AccuSine PFV+ electronic VAR controller
- Local Publishable Date
- 2025-10-09
- Serviceability
- No
- Scope Perimeter
- At least in Europe
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 5 - INITIALIZED WITH DataSCAN OK (Migration)
- Current Transformer Type
- split core
- Measurement Accuracy
- 1 %
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- AccuSine
- Secondary Current
- 1 A
- Product Kit Identifier
- N
Diameterinner 152.4 mm, outer 215.9 mm
Local Data StatusPublishable
Device TypeTransformer - current transformer
TraceabilityNo
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorN
Current Transformer Ratio2000/1
Electrical Connectionflying lead 3.65 m720 V
Package Weight Lbs2.0 kg
Product Or Component Typecurrent transformer
ReturnabilityNo
Sustainable PackagingNo
Product ManagerSREEMANT ROY
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Compliant with Exemptions
- Take Back
- No
- China ROHS Regulation
- X
- Packaging Made With Recycled Cardboard
- No
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- current transformer
Specifications
- Depth
- 0 in
