Square D PCSPCTFCL50056 AccuSine+ Split Core Current Transformer 500/5, 152.4mm Diameter
- MPN: PCSPCTFCL50056
- PPN: SCH-PCSPCTFCL50056
- UNSPSC: 39121032
CAD
$1419.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

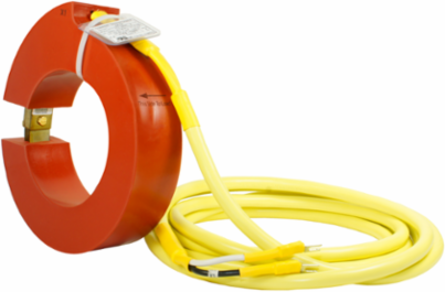

This round split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 500A and a secondary rating of 5A. The inner diameter of this coil is 152.4mm. Measurement accuracy of the primary rating is 4% from 200A to 300A and 3% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 1.9 kg
- Range Compatibility
- AccuSine AccuSine PCS+ active harmonic filter || AccuSine AccuSine PFV+ electronic VAR controller
- Current Transformer Type
- split core
- Shape
- round
Secondary Current5 A
Accessory / Separate Part Categorymeasurement accessory
Product Or Component Typecurrent transformer
RangeAccuSine
Complementary
- Network Frequency
- 50...400 Hz
- Current Transformer Ratio
- 500/5
- Electrical Connection
- flying lead 3.65 m720 V
- Line Rated Current
- 500 A
- [Uimp] Rated Impulse Withstand Voltage
- 10 kV (50 µs)
- Net Weight
- 1.9 kg
- Accuracy Class
- class 3
[Ue] Rated Operational Voltage< 720 V AC 50...400 Hz
Measurement Accuracy3 %
Input Impedance0.12 Ohm
Continuous Thermal Current Rating Factor1.25 30 °C || 1 55 °C
Diameterinner 152.4 mm || outer 215.9 mm
Depthoutside : 38.1 mm
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Product Certifications
- CE || cURus
- Standards
- IEC 60044-1
Ambient Air Temperature For Operation-45-55 °C
