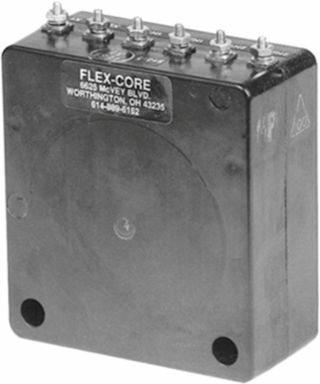

Square D PCSPCT190XSUM5 AccuSine+ Summing Transformer 5+5+5+5+5/5, 600 V AC, 1.8 kg
- MPN: PCSPCT190XSUM5
- PPN: SCH-PCSPCT190XSUM5
- UNSPSC: 39121032
CAD
$1535.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for precision in electrical applications, the AccuSine+ summing transformers from Schneider Electric efficiently totalize five currents, making them an essential component for accurate power measurement. With a robust design featuring a rated operational voltage of 600 V AC and a compact footprint, these transformers are engineered for seamless integration into various systems. Weighing just 1.8 kg and equipped with a current transformer ratio of 5+5+5+5+5/5, they ensure reliable performance while maintaining a continuous thermal current rating factor that adapts to varying temperatures. Additionally, the device meets rigorous safety standards, including CSA and cURus certifications, affirming its suitability for demanding environments.
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 1.8 kg
- Range Compatibility
- AccuSine AccuSine PCS+ active harmonic filter || AccuSine AccuSine PFV+ electronic VAR controller
- Product Or Component Type
- summing transformer
Secondary Current5 A
Accessory / Separate Part Categorymeasurement accessory
RangeAccuSine
Complementary
- Network Frequency
- 50...400 Hz
- Mounting Mode
- by screws
- Electrical Connection
- studs2500 V
- Height
- body: 124 mm
- Input Impedance
- 0.3 Ohm
- [Uimp] Rated Impulse Withstand Voltage
- 10 kV (50 µs)
- Depth
- base depth : 119.1 mm || body : 55.6 mm
[Ue] Rated Operational Voltage600 V AC 50...400 Hz
Current Transformer Ratio5+5+5+5+5/5
Widthbase width: 114.3 mm || body: 114.3 mm
Mounting Supportplate
Continuous Thermal Current Rating Factor1.33 30 °C || 1 55 °C
Net Weight1.8 kg
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environment
- Product Certifications
- CSA || cURus
