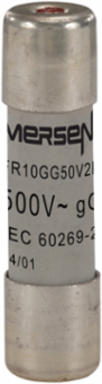

Mersen S216653 Cylindrical Fuse-Link gG 500VAC 2A 10x38 with Visual Indicator
Mersen S216653 Cylindrical Fuse-Link gG 500VAC 2A 10x38 with Visual Indicator
- MPN: S216653
- UPC: 8430399007878
- PPN: FER-S216653
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$35.38/ EA
Description
Mersen aM and gG fuse-links cover a wide range of physical sizes and ampere ratings for 400, 500, and 690VAC for protection in electrical distribution circuits and various industrial applications. Most ratings are available in size 8x31 and size 10x38 with an optional indicator, and in size 14x51 and 22x58 with an optional striker to activate an auxiliary contact. Size 10x38 is also available with striker. All cylindrical fuse-links have ceramic bodies and silver-plated contacts. Cylindrical fuse-links "gG" are used for the protection of cables, motors and LV-networks. They limit and cut off unacceptable overcurrents and short-circuit currents up to their nominal breaking capacity. Cylindrical fuse-links "gG" also protect electrical equipment and installations against the dynamic effect of high short-currents. Our technology and process was designed to ensure highly reliable technical performance.
Specifications
Specifications
- Rated voltage AC IEC
- 500 V
- Ampere Rating
- 2 A
- AC or DC
- AC/DC
- Fuse Size
- 10x38
- AC Max I.R./Breaking Capacity: I1
- 120 kA
- Indication System
- Yes
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- Ceramic
- Length
- 1.5 in
Rated voltage DC IEC250 V
ROHS CompliantYes
Speed/CharacteristicgG
MountingClip
Max. Rated Breaking Capacity DC100 kA @ 250 V, L/R = 15 ms
Indication System TypeVisual Indicator
Connection/Terminal TypeFerrule
Power Dissipation at Rated Current Value0.5 W
Weight0.018 lb
