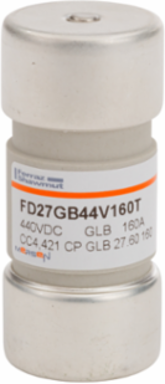

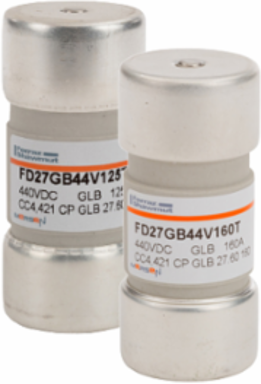

Mersen M075704 Protistor 27x60 Cylindrical Fuse-Link, 160A, 440VDC, gLB, Ceramic
- MPN: M075704
- PPN: FER-M075704
CAD
$818.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
| Rated voltage DC IEC | 440 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gLB |
| Mounting | Clip |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 2.37 in |
| Ampere Rating | 160 A |
|---|---|
| AC or DC | DC |
| Fuse Size | 27x60 |
| Max. Rated Breaking Capacity DC | 100 kA |
| Indication System Type | Striker |
| Connection/Terminal Type | Ferrule |
| Power Dissipation at Rated Current Value | 24.2 W |
| Weight | 0.176 lb |
