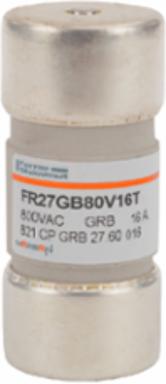

Mersen V221439 Protistor 27x60 mm Cylindrical Fuse-Link 16A 800VAC with Trip Indicator
- MPN: V221439
- PPN: FER-V221439
CAD
$228.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The 800VAC Protistor® BS88-4 fuse-link provides maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These fast acting gR fuses have been engineered to provide full range protection to eliminate all overloads and semiconductor fault. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. Each fuse-link is embedded with a trip-indicator.
Specifications
Key Specifications
| Rated voltage AC IEC | 800 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gR |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 90 kA |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 2.37 in |
| Ampere Rating | 16 A |
|---|---|
| AC or DC | AC |
| Fuse Size | 26x60 |
| Clearing I2t At Rated Voltage | 250 A²s |
| Design Details | gRB |
| Indication System Type | Striker |
| Connection/Terminal Type | Ferrule |
| Power Dissipation at Rated Current Value | 3.5 W |
| Weight | 0.176 lb |
