Telemecanique Sensors XCSDMR5902 Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMR, 1 NC + 1 NO, staggered, 2 m
Telemecanique Sensors XCSDMR5902 Coded magnetic switch, Telemecanique Safety switches XCS, XCSDMR, 1 NC + 1 NO, staggered, 2 m
- MPN: XCSDMR5902
- PPN: TES-XCSDMR5902
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$189.78/ EA
Description

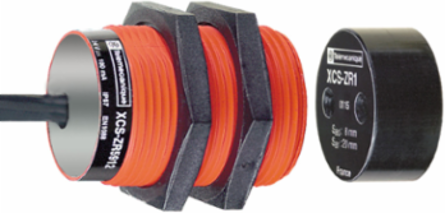

This XCSDMR Coded Magnetic Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 1 normally open and 1 normally closed staggered contact in presence of magnet. It has a cylindrical design with a 2 meter with PVC cable connection, allowing for flexible installation. Its B10D reliability data is 50 000 000. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Specifications
Environment
- Product Certifications
- UL || CSA
- Standards
- UL 508 || ISO 14119 || CSA C22.2 No 14 || EN/IEC 60204-1 || EN/ISO 12100 || EN/IEC 60947-5-1
- Vibration Resistance
- 10 gn 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
- Maximum Sensitivity To Magnetic Fields
- 0.3 mT
Ambient Air Temperature For Operation-25-85 °C
Shock Resistance30 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529
Electrical Shock Protection Classclass II EN/IEC 61140
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum [Ie] Rated Operational Current
- 100 mA
- Short-Circuit Protection
- 500 mA external cartridge fuse gG (gl)
- Switching Capacity In Ma
- 0.1...100 mA
- Contacts Material
- rhodium
- Resistance Across Terminals
- 10 Ohm
- Net Weight
- 0.146 kg
- Maximum Switching Voltage
- 100 V DC
- Cable Material
- PVC
- Safety Reliability Data
- B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
- Electrical Durability
- 1200000 cycles
Switching Frequency150 Hz
Diameter30 mm
[Sar] Assured Tripping Distance20 mm
Insulation Resistance1000 MOhm
Length39 mm
[Uimp] Rated Impulse Withstand Voltage2.5 kV EN/IEC 60947-5-1
[Sa] Assured Operating Distance8 mm
Breaking Capacity10 VA
Enclosure Materialthermoplastic PBT
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Cable Length
- 2 m
- Component Name
- XCSDMR
- Material
- plastic
- Contacts Type And Composition
- 1 NC + 1 NO
- Electrical Connection
- pre-cabled
- Approach Directions
- 1 direction
- Number Of Poles
- 2
[Ue] Rated Operational Voltage24 V DC
Product Or Component Typecoded magnetic switch
Designcylindrical
SizeØ 30 x 38.5 mm
Contact Operationstaggered
Cable Composition4 x 0.25 mm²
[Ui] Rated Insulation Voltage100 V DC
