Brady DAT-99-637-10 DATAB Series Polyvinyl Fluoride Labels, 0.5" H x 1" W, Pack of 10000 Labels, Yellow
- MPN: DAT-99-637-10
- UPC: 662820272991
- PPN: BRD-DAT-99-637-10
- UNSPSC: 55121612
CAD
$2009.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Self-Extinguishing B-637 is designed for cable and wire bundle identification and label applications where self-extinguishing properties are required.
Features
- Matte finish material with permanent acrylic adhesive can be dot matrix printed
- Judged to be self-extinguishing by laboratory testing and exhibits good solvent and heat resistance
- Meets MIL-M-87958 requirements
- Service temperature of -94°F to 275°F (-70°C to 135°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; Component and Equipment Labeling
- Brand Name
- Brady®
- Compatible Surface Types
- General
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; MIL-M-87958
- For Use with Printer
- Dot Matrix Printers
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Quantity per Roll
- 10000
- Ribbon Series
- R2000; R5000
- Suggested Ribbon Series
- R5000
- Total Quantity
- 10000
- Adhesive Type
- Permanent Acrylic
- Brady Material Number
- B-637
- Label Properties
- Self Laminating Labels & Wraps
- Material Properties
- Flame-retardant
- SAP B-Number
- B-637

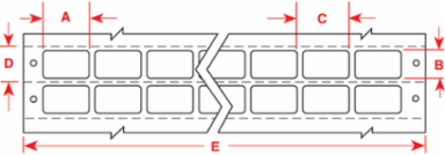

- Dimensions (Metric)
- 25.40 mm W x 12.70 mm H
- Height (in/ft/yd)
- 0.5 in
- Horizontal Repeat
- 1.1 in
- Label/Tape Size (in/ft/yd)
- 0.5 in H x 1 in W
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 4.06 mm
- Minimum Service Temperature °F
- -94 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.52 mm
- Printable Area Height (mm/cm/m)
- 12.70 mm
- Sign Size-General
- 0.5 in x 1 in
- Thickness (in/ft/yd)
- 0.0036 in
- Vertical Repeat
- 0.667 in
- Web Width (in/ft/yd)
- 8.6 in
- Width (in/ft/yd)
- 1 in
- Wire Diameter Range
- 0.06 in to 0.16 in
Board ApplicationThrough Hole - Top
ColorYellow
Corner TypeRounded Corners
FinishMatte
Label/Media FormatPack
Print TechnologyDot Matrix
Printer CompatibilityDot Matrix
Quantity per Row7
ShapeRectangle
Total Qty per Pack10000 Label(s) / Pack
Trade NameDATAB®
After ProcessYes, this material will work with this application
Indoor or Outdoor UseOutdoor Use
MaterialPolyvinylfluoride
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Heat-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Dimensions0.5 in H x 1 in W
Dimensions 20.5 in H x 1 in W
Height (mm/cm/m)12.70 mm
Horizontal Repeat (mm)27.94 mm
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.16 in
Minimum Service Temperature °C-70 °C
Minimum Wire Diameter (in/ft/yd)0.06 in
Printable Area Dimensions (Metric)12.70 mm H x 25.40 mm W
Printable Area Width (mm/cm/m)25.40 mm
Size - Width (mm)25.40 mm
Thickness (mm/cm/m)0.091 mm
Vertical Repeat (mm)16.94 mm
Web Width (mm/cm/m)218.44 mm
Width (mm/cm/m)25.4 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
