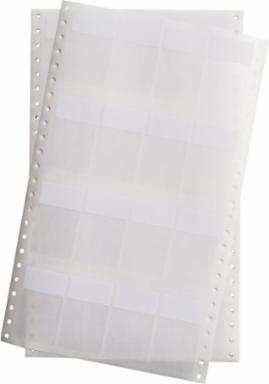

Brady DAT-186-292-2.5 DATAB Series Self-Laminating Vinyl Labels, 2.5" H x 1.5" W, Pack of 2500 Labels
- MPN: DAT-186-292-2.5
- UPC: 662820161837
- PPN: BRD-DAT-186-292-2.5
- UNSPSC: 55121612
CAD
$1839.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Self-Laminating Vinyl (B-292) is a matte vinyl with a clear overlaminate to protect graphics against oil, water, and mild solvents.
Features
- Vinyl labels feature clear "trailer" that wraps to protect printed text
- Flexible, self-extinguishing material conforms to most surfaces
- Operating temperature of -40°F to 150°F (-40°C to 65.5°C)
- RoHS Compliant;and UL Recognized when printed with Brady Series R2000, R5000, and R7300 ribbons
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Clear/White
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- Dot Matrix Printers
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Quantity per Roll
- 2500
- Ribbon Series
- R2000; R5000
- Suggested Ribbon Series
- R5000
- Total Quantity
- 2500
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Self-laminating Vinyl
- Overlaminate Included
- Overlaminate Included
- SAP B-Number
- B-292
- Dimensions (Metric)
- 38.10 mm W x 63.50 mm H
- Height (in/ft/yd)
- 2.5 in
- Horizontal Repeat
- 1.6 in
- Label/Tape Size (in/ft/yd)
- 2.5 in H x 1.5 in W
- Maximum Service Temperature °F
- 158 °F
- Maximum Wire Diameter (mm/cm/m)
- 14.22 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 7.11 mm
- Printable Area Dimensions (Metric)
- 19.05 mm H x 38.10 mm W
- Printable Area Height (mm/cm/m)
- 19.05 mm
- Printable Area Width (mm/cm/m)
- 38.10 mm
- Size - Width (mm)
- 38.10 mm
- Thickness (mm/cm/m)
- 0.102 mm
- Vertical Repeat (mm)
- 76.20 mm
- Web Width (mm/cm/m)
- 185.42 mm
- Width (mm/cm/m)
- 38.1 mm
Brand NameBrady®
Compatible Surface TypesGeneral
FinishMatte
Label/Media FormatRoll
Print TechnologyDot Matrix
Printer CompatibilityDot Matrix
Quantity per Row4
ShapeRectangle
Total Qty per Pack2500 Label(s) / Pack
Trade NameDATAB®
Brady Material NumberB-292
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesFlame-retardant; Self-laminating
Resistance PropertiesChemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
Dimensions2.5 in H x 1.5 in W
Dimensions 22.5 in H x 1.5 in W
Height (mm/cm/m)63.50 mm
Horizontal Repeat (mm)40.64 mm
Maximum Service Temperature °C70 °C
Maximum Wire Diameter (in/ft/yd)0.56 in
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.28 in
Printable Area Dimensions0.75 in H x 1.5 in W
Printable Area Height (in/ft/yd)0.75 in
Printable Area Width (in/ft/yd)1.5 in
Sign Size-General2.5 in x 1.5 in
Thickness (in/ft/yd)0.004 in
Vertical Repeat3 in
Web Width (in/ft/yd)7.3 in
Width (in/ft/yd)1.5 in
Wire Diameter Range0.28 in to 0.56 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
